ParCAD

Parametric CAD you write as code — for people, and for agents.

Status: 0.0.7, experimental. One author, and the DSL still moves. Every operation is checked against measured geometry (eval/cases/), but none of it has had the years of abuse that make a CAD kernel trustworthy. Measure a part before you machine it.

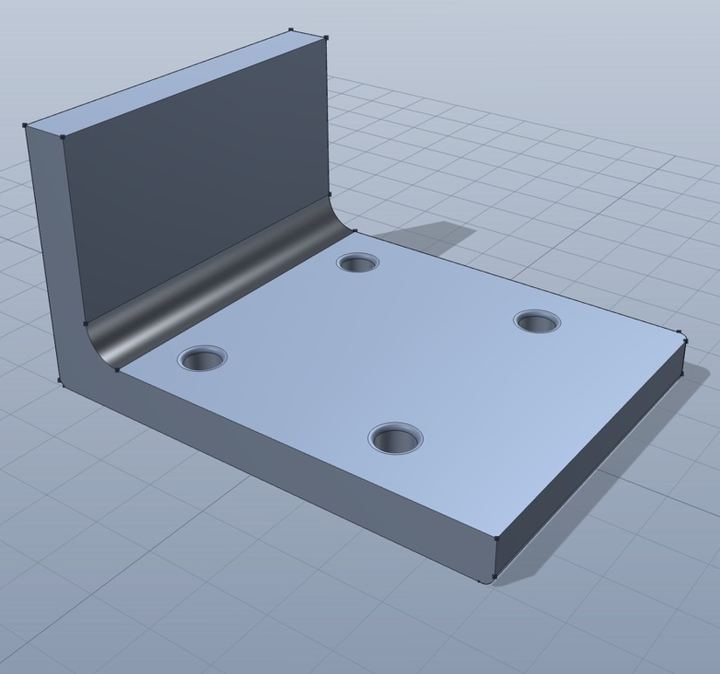

const plate = box(80, 60, 8).tag("plate");
const wall = box(8, 60, 40).at(-36, 0, 20).tag("wall");

const body = union(plate, wall, { blend: 6 });          // the blend is the fillet
const drilled = body.cut(...grid(2, 2, 36, 40).map(([x, y]) => cylinder(3, 32).at(x, y)));

return drilled
  .edges({ curve: "circle", role: "hole", adjacentTo: { faceNormal: "+z" } })
  .expect({ count: 4 })                                  // a build error, not a surprise
  .fillet(0.8);

You never name an edge by index. You describe it — the circular rims that open onto the top face — and the description still works after you move a hole.

One graph, one exact kernel

Your script builds a small JSON graph, and an exact kernel reads it — OpenCASCADE: real faces and edges, STEP export, and a refusal rather than an approximation when it cannot do something faithfully. The graph is what keeps today's script working after tomorrow's kernel swap.

Parts get measured, not assumed — volume, wall thickness, whether two bores actually meet. An agent gets the same numbers over MCP, with no screen to look at.

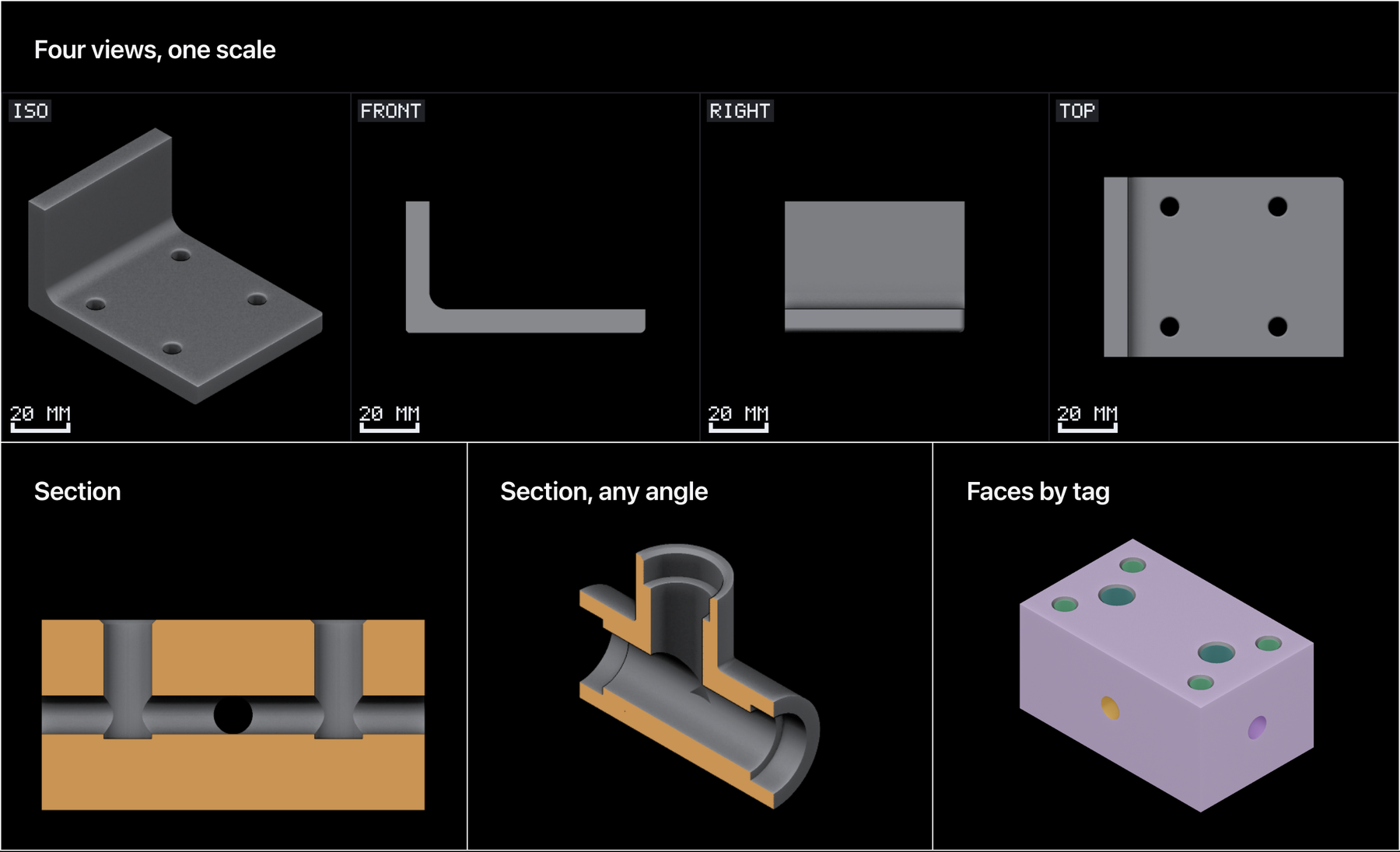

And when it does look, it gets pictures made for reading: views that share one scale, sections through the inside, and every surface coloured by the tag that built it.

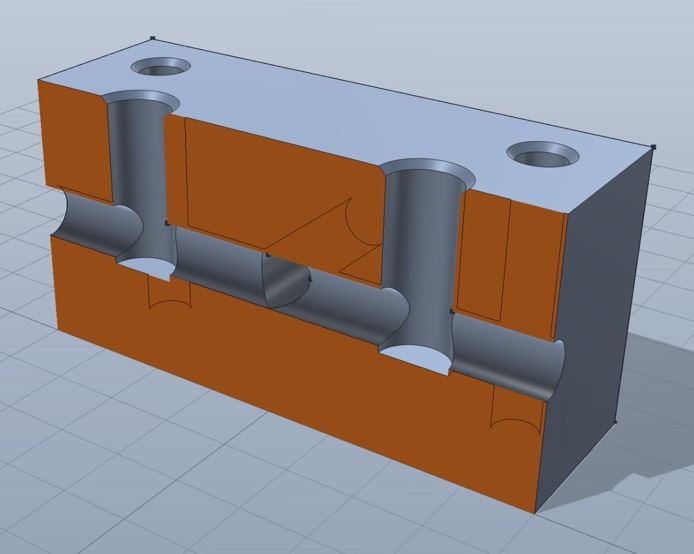

It is aimed at small mechanical parts — brackets, flanges, manifolds, heat sinks, the things you print or machine one of. examples/ is twenty-two.

Why not CadQuery, build123d or OpenSCAD

Those are good, and much older. Three differences. Selectors are descriptive and checked — .expect({ count: 4 }) turns a selector that silently started matching three edges into a build error, which is the failure mode that makes code-CAD fragile. What you see, what you measure and what you export come off one exact B-rep, so the preview and the STEP file are one model, not two projects. And measurement is an output rather than something you eyeball, which is what makes the MCP surface real instead of a wrapper.

Install it

With Homebrew, on macOS or Linux (Linux from 0.0.6), which installs the host and no window:

brew tap ierehon1905/parcad
brew trust ierehon1905/parcad
brew install parcad

Then add it to your agent, which starts parcad when it needs it. To use the app yourself, run parcad serve and open http://127.0.0.1:4242 — the whole app is there, in your browser.

On Windows, from 0.0.6, the desktop app through winget:

winget install ParCAD.ParCAD

Nothing on the Homebrew path is quarantined. The same parcad is the headless driver (parcad part.js), and a client of the running host: parcad tools lists what an agent can call over MCP and parcad call <tool> calls it from a shell.

Or the desktop app, from Releases:

Each platform's build measures the whole eval corpus with the worker it ships before it is uploaded. None of them is signed. macOS will refuse to open the app the first time, and again after each update. Clear the flag:

xattr -dr com.apple.quarantine /Applications/ParCAD.app

Windows SmartScreen warns the same way: More info, then Run anyway. Every platform also has a parcad-cli-* archive — parcad, its worker beside it and the seed parts — for running the host without a window. Keep the two binaries together.

Build it

macOS, Linux and Windows. Day-to-day development is on macOS; the release workflow builds and measures on all three, and Linux on arm64 builds too.

You need Rust (the toolchain is pinned; rustup honours it), Bun, CMake, a C++ compiler, patch(1) and Python 3.11+. A clone is a 28 MB pack that expands to 144 MB, most of it a vendored OpenCASCADE tree, and a full build wants around 20 GB free. On Linux the window also needs WebKitGTK (libwebkit2gtk-4.1-dev), and libclang-dev for the script sandbox's bindings. On Windows, use MSVC (Visual Studio Build Tools) and run the scripts from Git Bash, which also provides patch.

cd app && bun install --frozen-lockfile && cd ..   # first: the Rust build shells out to bun
cargo build --locked --release
tools/build-worker.sh --release   # the exact kernel — ~5 min on 14 cores, once
cd app && bun run tauri dev

cargo build produces a dev app whatever the profile — Tauri's switch is the custom-protocol feature, not --release — so launch the window through tauri dev or tauri build, never the bare binary. And a root cargo build deliberately does not build OpenCASCADE; tools/build-worker.sh does.

tools/check.sh            # everything that gates a change (~5 min)
tools/check.sh --fast     # the kernel crates and the editor tests (~4 s)

Or headless:

bun tools/run.ts examples/bracket.js > /tmp/bracket.json
./target/release/parcad /tmp/bracket.json --out out --step out/part.step

The app serves its UI and an MCP endpoint on http://127.0.0.1:4242. Parts live in ~/Library/Application Support/parcad as plain .js files you can edit anywhere.

Use it from an agent

With nothing installed: open ParCAD web, choose Connect your AI, and give your client the link it shows — Claude Code, the Claude app as a custom connector, Cursor, VS Code, or any client that connects to a URL. The tab is the server, with the same tools as the app, and it has to stay open; a relay passes the messages and keeps none (relay/README.md).

Every route below runs the same parcad on your machine: the one Homebrew installs, which the desktop app carries too. Install either first.

As a plugin, which brings the MCP server and a skill that says how to use it:

/plugin marketplace add ierehon1905/parcad
/plugin install parcad@parcad

In Codex, which finds parcad on PATH, so the Homebrew install:

codex plugin marketplace add ierehon1905/parcad
codex plugin add parcad@parcad

In Cursor or VS Code, with parcad on PATH:

Or add the server by hand, in any client that launches stdio servers:

claude mcp add parcad -- parcad mcp

codex mcp add parcad -- parcad mcp

parcad mcp relays to the app or parcad serve when one is running, so the agent shares the live session with your window. When none is running it hosts one itself, for as long as the client stays connected. A client that connects by URL can use http://127.0.0.1:4242/mcp directly, but only while a host is up; brew services start parcad keeps one up from login.

The same tools are on the command line, with the same names and arguments — parcad tools lists them, parcad call evaluate_part --set script=@part.js calls one — and they work whether or not the app is open.

Start the agent on the read_docs tool, which hands over the whole language in one call.

More

• examples/ — twenty-two parts, from a bracket to a hydraulic manifold
• CONTRIBUTING.md — the gate, and what a change has to satisfy
• docs/ARCHITECTURE.md — how the pieces fit, and why
• docs/GOTCHAS.md — traps that have already cost a day each
• docs/NEXT.md — what's missing, in order

Licensing

ParCAD is free software under the GNU AGPL-3.0 or later: use it, change it and share it, but a modified ParCAD you distribute or run as a service must publish its source too. The parts you make are yours — part scripts and everything ParCAD exports from them can be licensed however you like, and the seed parts in examples/ are MIT. Releases through v0.0.9 stay MIT or Apache-2.0.

Built on components under other licences: OpenCASCADE and its bindings under vendor/ are LGPL-2.1, and one file of our own, crates/parcad-core/src/occlusion.rs, is MPL-2.0 because it was ported from fidget. Building from source is unencumbered; redistributing a binary carries obligations — NOTICE.md spells them out, including how to swap in your own OpenCASCADE.

This software makes use of facilities provided by the Open CASCADE Technology software.
