Overview

Kshana PNT-resilience simulator gives AI agents access to the Kshana engine for modelling positioning, navigation, and timing resilience. It covers orbital and reference-frame calculations, GNSS conditions, and sensor-fusion scenarios, including jamming, spoofing, and clock holdover. Reach for it when an agent needs to examine how long a system remains within position or timing limits after GNSS degradation. Runs are reproducible from the scenario, seed, and engine version.

Use cases

  • Simulate GNSS jamming and spoofing scenarios
  • Evaluate clock holdover after signal loss
  • Compare navigation margins from different sensors
  • Inspect orbital and reference-frame calculations
  • Analyse PNT resilience with reproducible runs

Key features

  • Orbit simulation
  • Reference-frame calculations
  • GNSS disruption modelling
  • Navigation-sensor fusion
  • Reproducible scenario runs
  • Capability evidence labels

Tools49

What Kshana PNT Resilience simulator lets your agent do. Expand a tool for its parameters.

Verified live~24.5k tokens of context

Security & health

What it can reach and how reliably it runs — from our own checks, not the maintainer’s claims.

ActiveLast checked 1d ago

Recent health check succeeded.

14/15 checks healthy over the last 91d

What it can do

From the 49 tools this server returned when we ran it.

Runs commands · 1Can delete or modify data · 1Handles credentials · 2Makes network requests · 4Read-only tools · 47
Network at startup5 connections
Files written at startupNone
Install scriptsNone
npm provenanceSigned build
Package age22 days
Maintainers1

Observed 2026-11-03 in an isolated sandbox. A description of reach, not a security audit.

Supply-chain signal

No high-severity advisories surfaced by our automated scan.

Critical 0High 0Medium 0Low 0

Scanned 7d ago via OSV.dev · kshana-mcp@0.40.0 (npm)

Adoption & maintenance

Factual signals from GitHub, npm, and our automated checks — not a rating.

GitHub stars8Stargazers on the source repository.
npm downloads1.3kPackage downloads in the last 30 days.
Last commit1d agoMost recent push to the default branch.
Availability100%Our rolling endpoint + install checks that succeeded.
Install checkPassedOur sandbox started it and listed its tools.
Tools exposed49Callable tools this server registers over MCP.
Directory activity1 viewsConfig copies, upvotes, and views on AllMCPs.

How Kshana PNT Resilience simulator works

What Kshana PNT-resilience simulator MCP server does

Kshana PNT-resilience simulator exposes the Kshana PNT simulation engine to AI agents through MCP. Its subject area is resilience of positioning, navigation, and timing systems when GNSS signals are disrupted or unavailable. The engine can represent orbital motion, coordinate and reference-frame operations, GNSS conditions, and navigation-sensor fusion.

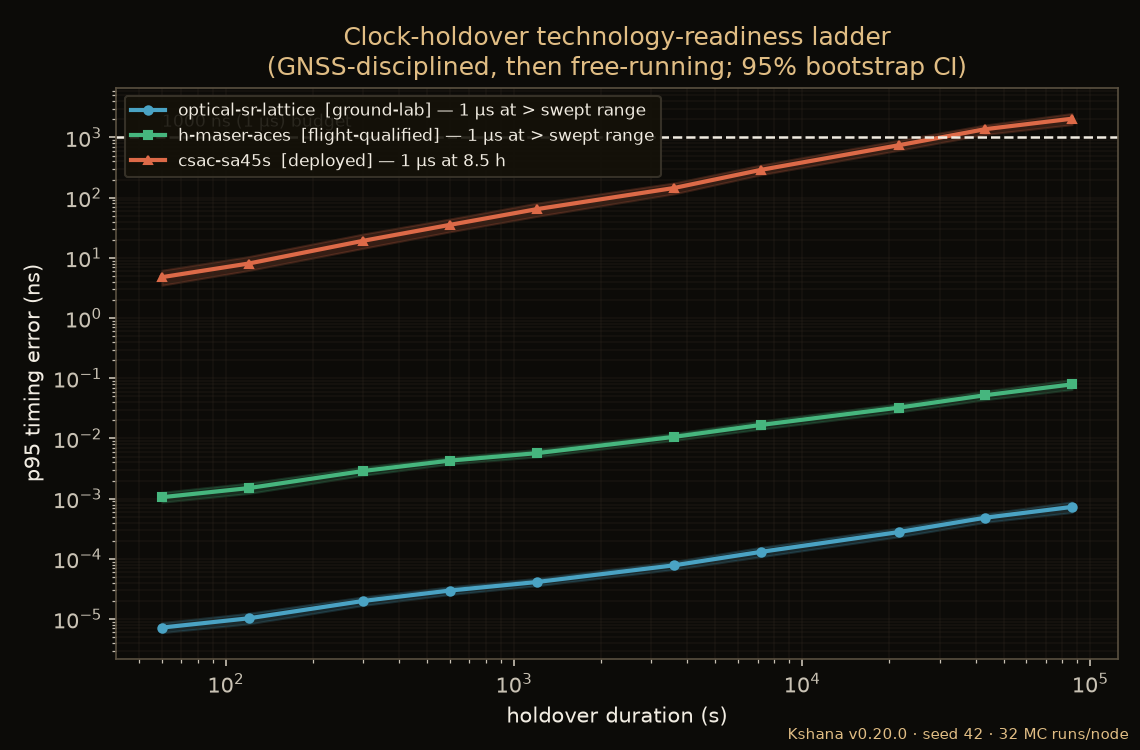

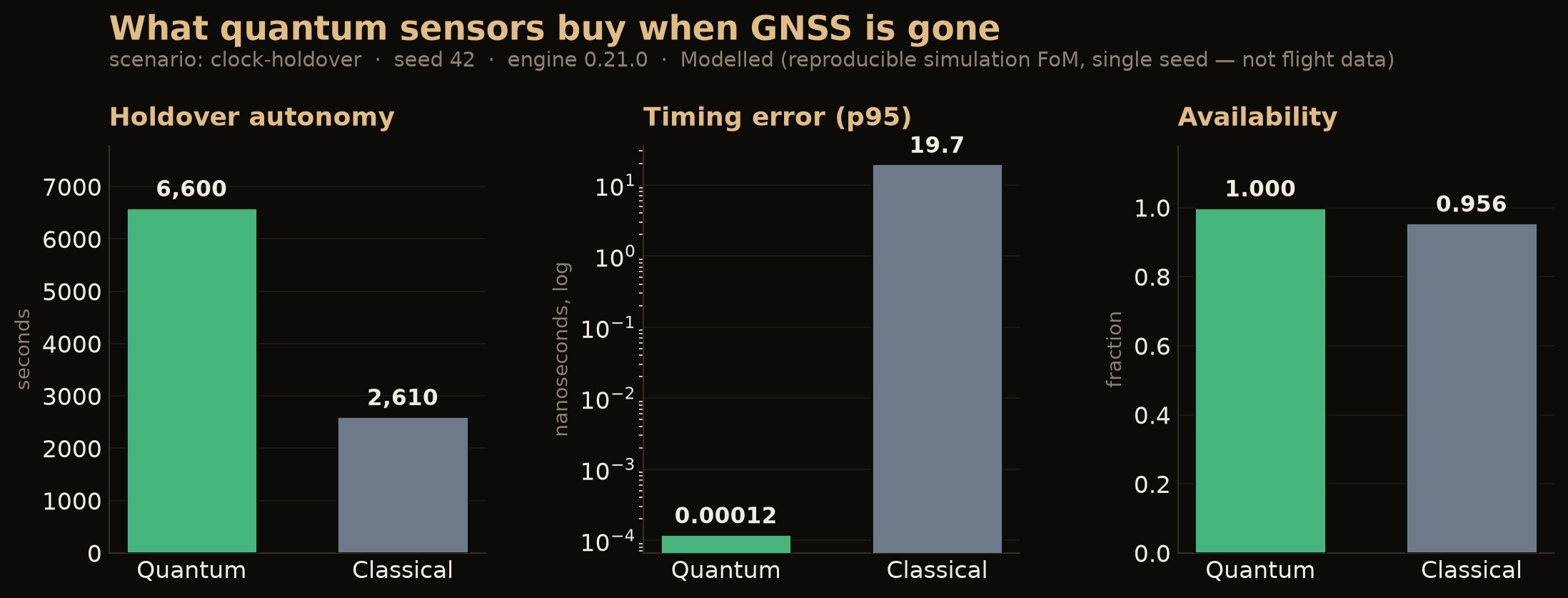

The simulator is intended for analysing failure and degradation scenarios rather than only nominal navigation. Supported examples include jamming, spoofing, and clock holdover. A run can be used to assess how long a system keeps its time and position within defined budgets, and to compare the margin provided by different clocks or sensors.

How it works

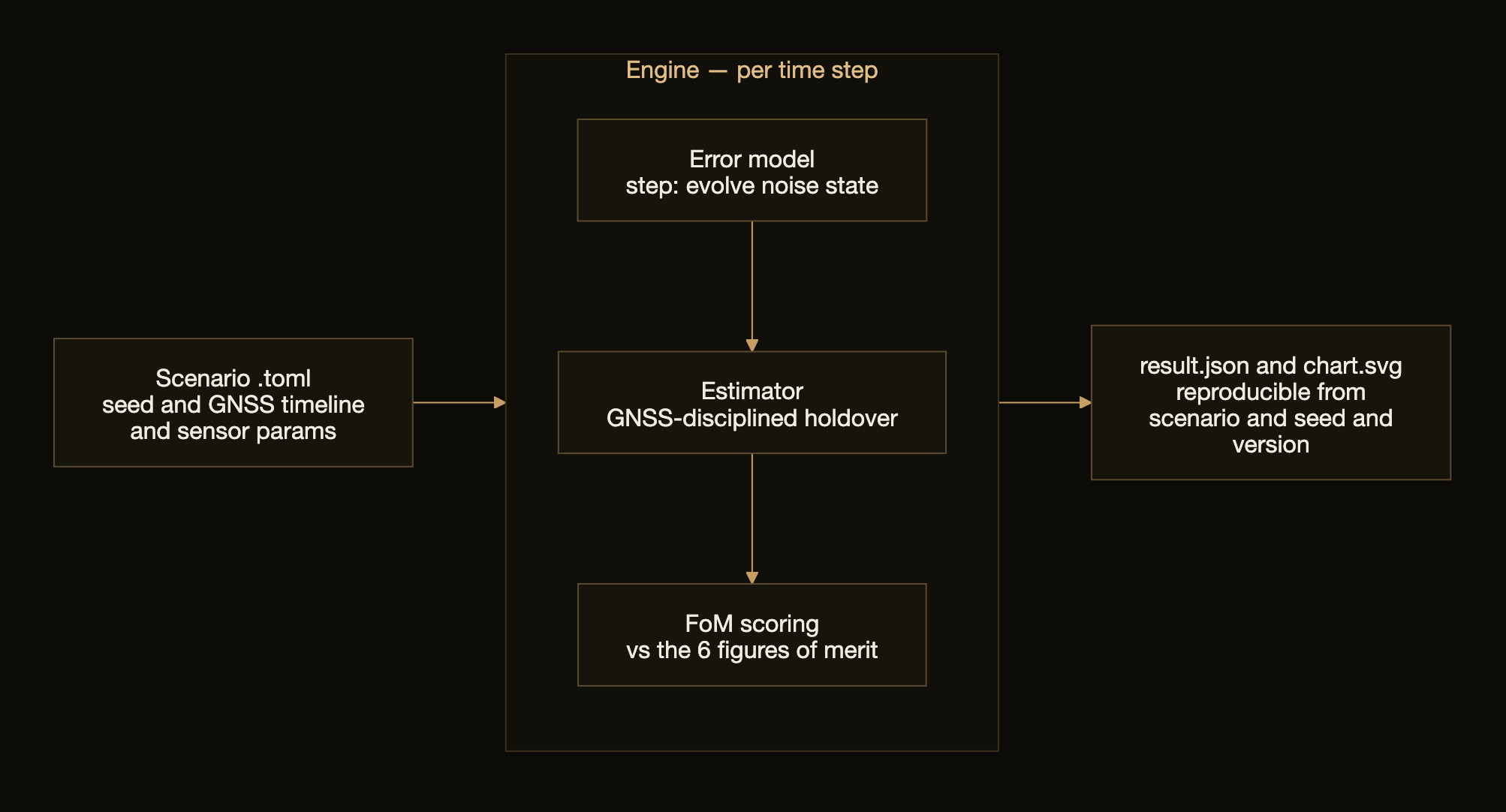

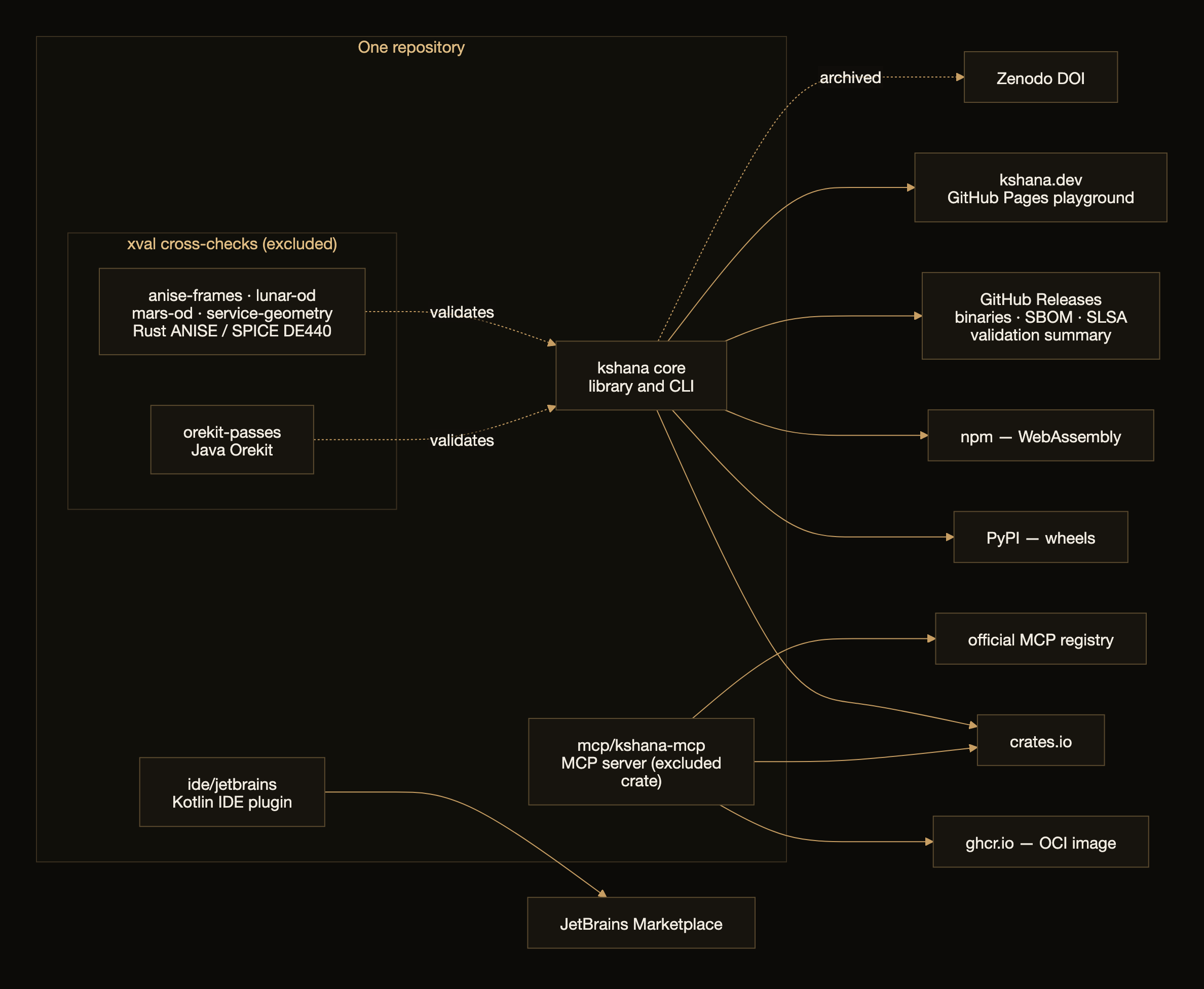

A scenario supplies the conditions for a run, together with a seed. Kshana uses those inputs and the engine version to produce reproducible results, so the same run can be repeated bit for bit. The broader Kshana project can run from a terminal, notebook, IDE, AI assistant, or browser; this listing focuses on its MCP surface for agent-driven access.

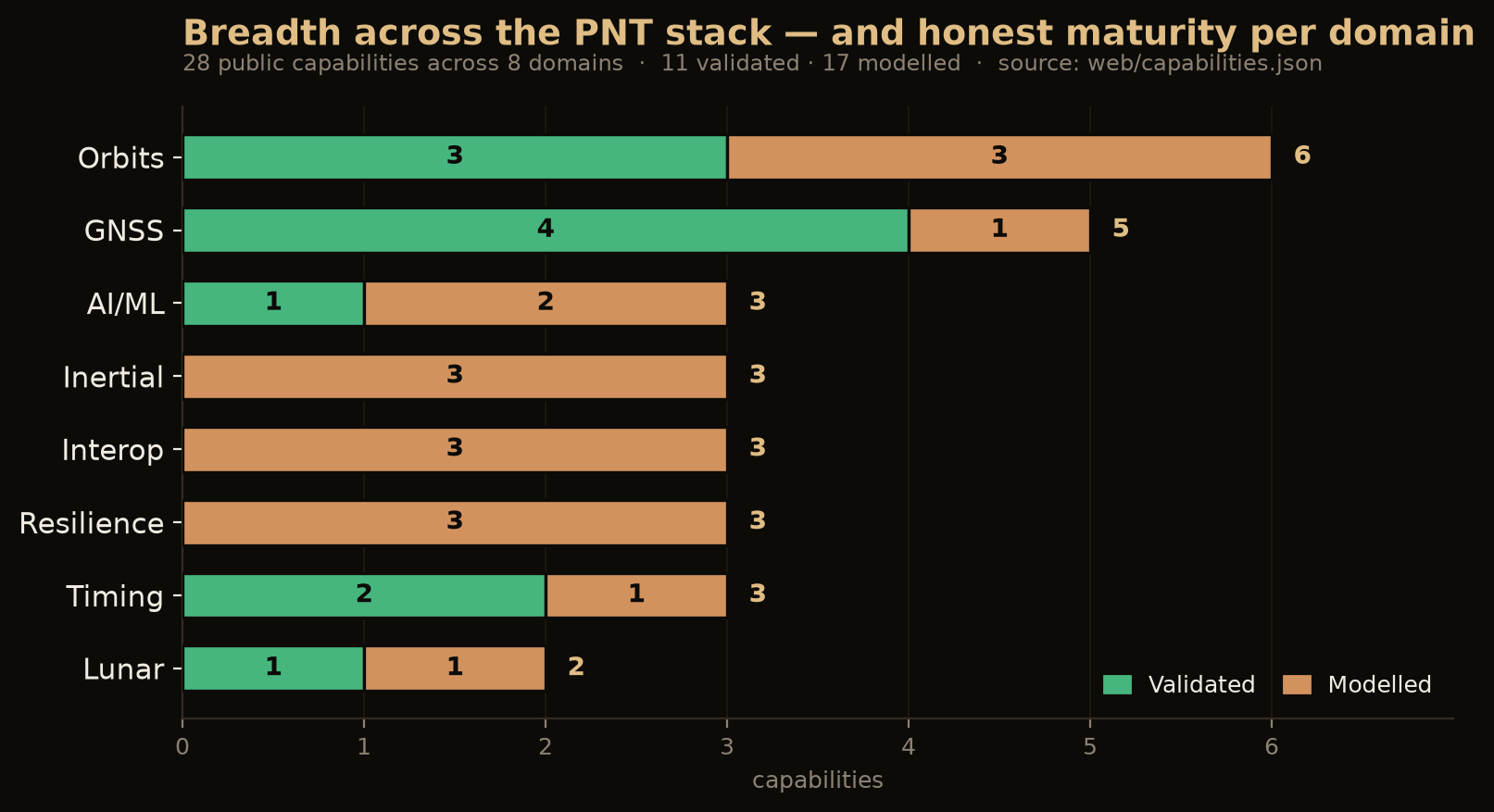

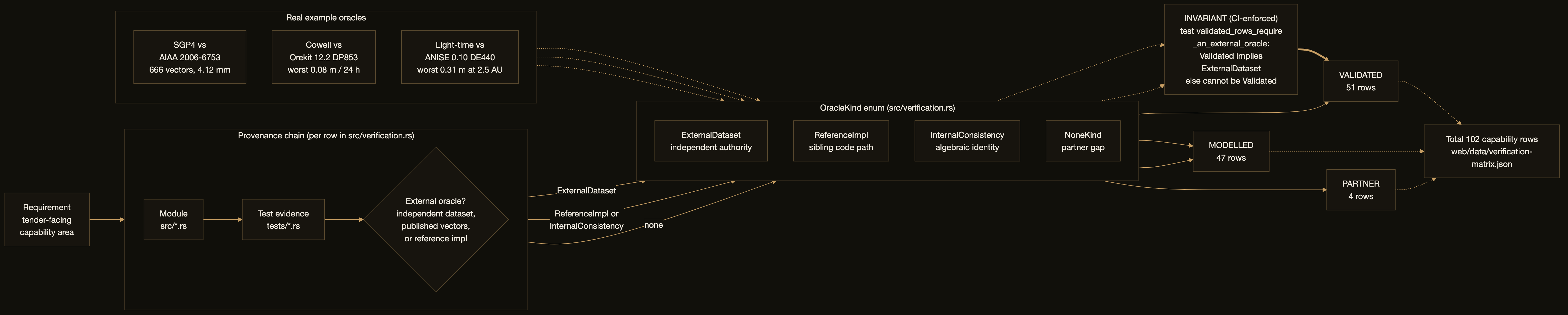

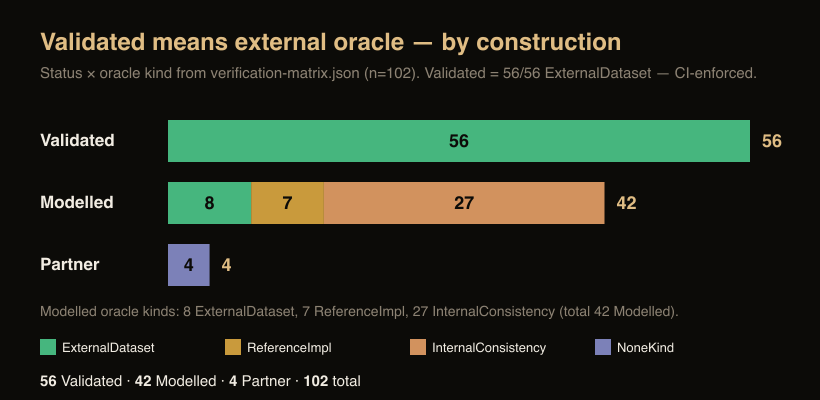

Kshana distinguishes capabilities by evidence status. The project’s machine-checked ledger labels them as VALIDATED when an independent external oracle agrees, MODELLED when they are internally consistent and explicitly identified as such, or PARTNER when they depend on a hardware part. This classification is useful when deciding whether a simulation result is suitable for a particular engineering or research workflow.

Tools and capabilities

The MCP interface is designed around the simulator’s main technical areas:

  • Orbit-related simulation and analysis.
  • Reference-frame and coordinate calculations.
  • GNSS signal and availability scenarios.
  • Fusion of navigation inputs and sensors.
  • Resilience analysis for jamming, spoofing, and holdover conditions.
  • Agent access to Kshana run results and simulation workflows.

These capabilities fit work that requires an agent to inspect PNT behaviour under degraded signals, compare timing or navigation margins, or reason about the consequences of losing GNSS service.

Limitations and notes

Simulation results depend on the selected scenario, seed, engine version, and the evidence status of the capability being used. “Validated,” “modelled,” and “partner” are different assurance categories, not interchangeable guarantees. The project describes itself as an open-source simulator, while also identifying a commercial licensing option; review the applicable licence before incorporating it into a product or service.

The engine is specifically oriented toward PNT resilience. It is therefore a better fit for orbital, GNSS, timing, navigation, and sensor-fusion analysis than for general-purpose geospatial or aerospace task automation. The project’s published material also identifies multiple user surfaces, including terminal, notebook, browser, and AI-assistant use, with the MCP surface providing the agent-facing route.

Read the full README View source on GitHub

Reviews

No reviews yet — be the first to share how it worked for you.

Frequently Asked Questions about Kshana PNT Resilience simulator

Kshana PNT-resilience simulator is an MCP server that connects AI agents to the Kshana positioning, navigation, and timing simulator. Its main tools cover orbit and reference-frame work, GNSS scenarios, and navigation-sensor fusion. It supports analysis of jamming, spoofing, and clock holdover with reproducible scenario runs.

You can simulate PNT resilience scenarios involving orbital calculations, reference frames, GNSS disruption, and navigation-sensor fusion. The simulator specifically covers jamming, spoofing, and clock holdover, helping assess whether time and position remain within defined budgets.

Yes, runs are reproducible from the scenario, seed, and engine version. This allows an agent or developer to repeat the same simulation and compare results without changing those inputs.

Kshana labels capabilities as VALIDATED, MODELLED, or PARTNER in a machine-checked ledger. VALIDATED indicates agreement with an independent external oracle; MODELLED denotes an internally consistent capability identified as such; PARTNER applies to capabilities involving a hardware part.
