KitWright MCP for Unity

The Most Advanced MCP Server for Unity Editor

中文 | English

💖 If you find this project useful, please consider giving it a Star. It helps more Unity developers discover it and supports ongoing development.

KitWright MCP for Unity is an MIT-licensed Unity Editor MCP server that lets AI assistants like Claude Code, Cursor, LM Studio, Windsurf, Codex, and VS Code Copilot operate directly inside your running Unity project.

Describe your game in one sentence — your AI assistant builds it in Unity through KitWright MCP for Unity's 274 built-in tools for scene creation, script generation, runtime validation, input simulation, performance analysis, and editor automation.

"Build a snake game with a 10x10 grid, food spawning, score UI, and game-over screen"

Your AI assistant handles it through KitWright MCP for Unity: creates the scene, generates all scripts, sets up the UI, and configures the game logic — all from a single prompt.

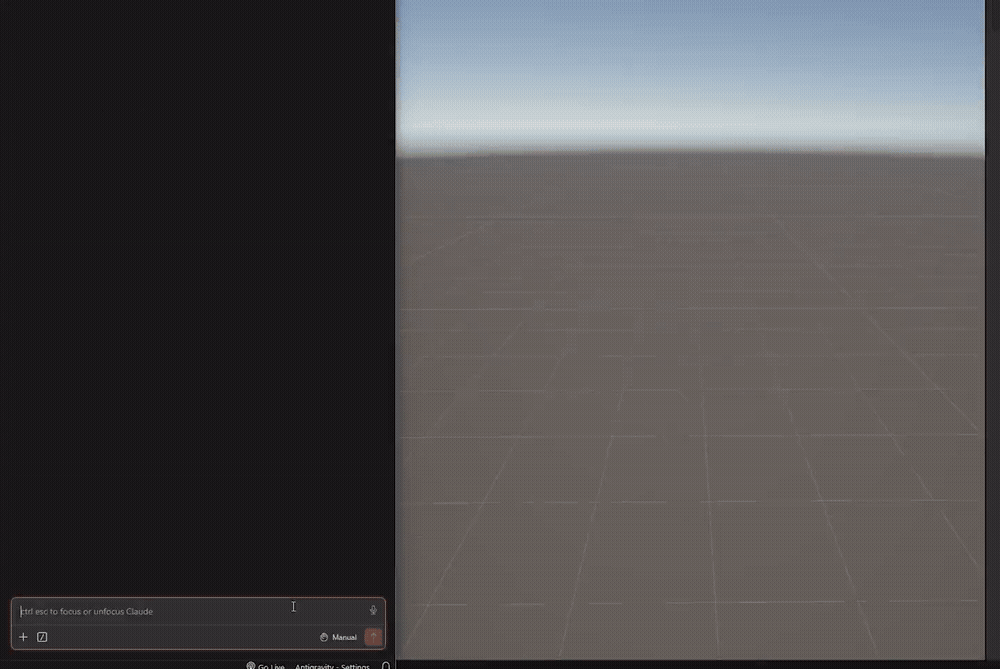

Demo — AI searches project prefabs and builds a city scene through MCP tools. Watch HD MP4.

Quick Start

If you just want to get connected fast, do these three things:

• Install the Unity package from the Git URL
• Open Window > KitWright > MCP Window and start the server from the Server tab
• Use the built-in one-click client configuration

1. Install via UPM (Git URL)

In Unity, go to Window → Package Manager → + → Add package from git URL:

https://github.com/kitwright/unity-mcp.git

💡 Before you clone or install, a quick ⭐ on GitHub would be greatly appreciated.

Optional: Install via OpenUPM

If you want Unity Package Manager to show registry-backed package version history and allow version selection, install from OpenUPM instead of Git.

Using the OpenUPM CLI:

openupm add com.kitwright.unity.mcp

Or add the scoped registry manually in Packages/manifest.json:

{
  "scopedRegistries": [
    {
      "name": "OpenUPM",
      "url": "https://package.openupm.com",
      "scopes": [
        "com.kitwright"
      ]
    }
  ],
  "dependencies": {
    "com.kitwright.unity.mcp": "1.0.0"
  }
}

If you installed from a Git URL before, remove the Git dependency first, then install from OpenUPM. Git-installed packages only show the resolved Git version in Unity and do not get the registry-backed Version History list.

Optional: Install from the Unity Asset Store

Importing the Asset Store package shows a This Unity Package has Package Manager dependencies dialog. Choose Install/Upgrade — the package needs com.unity.nuget.newtonsoft-json, and skipping the prompt leaves the project without it, which stops every KitWright script from compiling.

If you already chose Skip, the package offers to install the dependency for you on the next domain reload; you can also add it yourself from Window → Package Manager → + → Add package by name:

com.unity.nuget.newtonsoft-json

2. Start the MCP Server

Menu: Window → KitWright → MCP Window, then start the server from the Server tab.

The server starts on http://127.0.0.1:8765/ by default.

Broker Mode is the default transport. It runs a tiny local broker with Unity's bundled Mono, keeps the same 127.0.0.1 port for MCP clients, requires no client config change, and holds the connection across Unity script recompiles and Play Mode domain reloads. If the broker cannot start, the server falls back to direct in-process HTTP automatically; you can also turn broker mode off in the Server tab to use direct HTTP always.

The window has five tabs: Server, Settings, Skills, Tool Exposure, and Integrations.

Open the Tool Exposure tab if you want to edit the exact tools exposed by core or full.

Open the Settings tab if you need to adjust execute_code safety defaults or plugin debug logging.

3. Configure Your AI Client

Use the built-in One-Click MCP Configuration in the Server tab first.

Select your target client, click Configure, and the package writes the recommended MCP config entry for you.

For Claude Code, Cursor, and Codex, click Configure + Skills to also install the default project MCP workflow skill.

If you want project-specific AI guidance for the current Unity project, open the Skills tab to choose supported platforms and install the default unity-mcp-workflow skill.

If you prefer to edit config files manually, use the examples below as fallback references:

{
  "mcpServers": {
    "kitwright": {
      "type": "http",
      "url": "http://127.0.0.1:8765/"
    }
  }
}

{
  "mcpServers": {
    "kitwright": {
      "url": "http://127.0.0.1:8765/"
    }
  }
}

{
  "mcpServers": {
    "kitwright": {
      "url": "http://127.0.0.1:8765/"
    }
  }
}

{
  "servers": {
    "kitwright": {
      "type": "http",
      "url": "http://127.0.0.1:8765/"
    }
  }
}

{
  "mcpServers": {
    "kitwright": {
      "url": "http://127.0.0.1:8765/"
    }
  }
}

{
  "mcpServers": {
    "kitwright": {
      "type": "http",
      "url": "http://127.0.0.1:8765/"
    }
  }
}

[mcp_servers.kitwright]
url = "http://127.0.0.1:8765/"

4. Verify the Connection

Open your AI client and try a few safe requests first:

• "Call get_scene_info and tell me what scene is open."
• "Read unity://project/context and summarize the current editor state."
• "Use execute_code to return the active scene name."

If those work, the MCP server, resources, and primary execution tool are connected correctly.

5. Start Building

Open your AI client and try: "Create a 3D platformer level with 5 floating platforms"

Before You Start

• This package is Editor-only. It does not add runtime components to your built game.
• The MCP server starts on http://127.0.0.1:8765/ by default.
• Local MCP server settings are stored in UserSettings/KitWrightMcpSettings.json.
• The package defaults to the core MCP tool profile to reduce tool-list noise for AI clients. core currently exposes 43 high-signal tools centered on execute_code, play mode control, input simulation, screenshots, performance inspection, logs, compilation checks, structured object location and component editing, editor selection / prefab-stage state, live C# API reflection, Unity documentation lookup, and execute_menu_item as a low-friction fallback. Switch to full in the Server tab if you want all 274 tools exposed.
• execute_code safety checks and the stricter filesystem guard are enabled by default from the Settings tab. The guard blocks obvious destructive snippets, broad System.IO writes, raw file streams, and absolute/user/system/traversal paths. It catches accidents, not intent: safety_checks is a tool argument, so any client that can call execute_code can pass safety_checks=false and skip both the source blocklist and the compiled-assembly guard. It is neither a sandbox nor a security boundary — see SECURITY.md.
• Plugin debug logging is off by default and can also be enabled from the Settings tab. Warnings and errors are always written to the Unity Console.
• All exposed MCP tools run directly. There is no extra approval toggle.
• The window checks for updates in the background and shows an Update button in its header when a newer release exists — it can refresh Git installs in place or download and import the latest unitypackage automatically.

Why This Project

• execute_code First — Optimized around one in-memory C# execution tool for rich editor/runtime orchestration. See execute_code: In-Memory C# Execution below for details.
• Default Safety Checks — execute_code now has persistent default-on safety toggles, including a stricter filesystem guard for clients that do not expose per-call arguments clearly
• Play Mode Automation — Enter play mode, simulate keyboard/mouse input, capture screenshots, inspect logs, and validate behavior from the same MCP session
• Project Context Built In — Exposes live resources for project state, active scene, selection, compilation, console output, and MCP interaction history
• Focused by Default, Full When Needed — core exposes a compact high-signal toolset; full exposes 274 tools
• Single Unity Package — No extra approval UI, no external daemon to click through, and no Python requirement for the Unity-side plugin itself
• Extensible — Add custom tools with attribute-based discovery, or connect Unity to external MCP services when needed

Highlights

• 274 Built-in Tools — Scene editing, assets, scripts, play mode control, screenshots and screenshot diffing, performance analysis, prompts, resources, structured object location, SerializedObject-based component and project-settings editing, animator authoring, compound uGUI controls, editor-state inspection, menu-item fallback, and editor automation across 57 modules. Full list: TOOLS.md
• Structured Returns + instanceId Chaining — Tools return {success, message, data} JSON with stable instanceId fields so agents can chain by_id calls reliably instead of re-resolving by name
• IKitWrightCommand for execute_code — New snippet template with auto-Undo (ctx.RegisterObjectCreation / ctx.RegisterObjectModification / ctx.DestroyObject), structured logs (ctx.Log/LogWarning/LogError), and a tracked changelog returned to the agent
• Resources & Prompts — Live project context, scene/selection/error resources, resource templates, and reusable workflow prompts
• Input Simulation + Screenshots — Drive play mode with keyboard/mouse simulation and verify results with game/scene captures
• Built-in Updating — The MCP Window surfaces new releases and either re-pulls the Git package or auto-imports the latest unitypackage
• Integrations Tab — Detects Hot Reload, Memory Profiler, Addressables, Input System, Timeline, URP, and Test Framework, and shows which tools each one unlocks
• One-Click Client Configuration — Write MCP config entries for 19 targets directly from the Unity window: Claude Code, Cursor, VS Code (+ Insiders), Codex, Windsurf, Cline, Kiro, Trae, Rider (+ Junie), Kimi Code, Qwen Code, Antigravity, Kilo Code, OpenCode, GitHub Copilot CLI, CodeBuddy CLI, and Roo Code
• Tool Exposure Control — Edit the exact tools exposed by core and full
• Project Skills Manager — Configure project-level skills for supported AI clients, currently installing the default unity-mcp-workflow skill
• MCP Settings — Adjust execute_code safety defaults and enable verbose plugin debug logging when troubleshooting MCP connections or tool execution
• Vendor Agnostic — Works with any AI client that supports MCP: Claude Code, Cursor, LM Studio, Windsurf, Codex, VS Code Copilot, etc.

execute_code: In-Memory C# Execution

execute_code is the heart of KitWright MCP for Unity. It lets an AI write a C# snippet, compile it through a Roslyn-first in-memory flow, and run it on the editor thread — the agent gets the full Unity Editor and runtime API surface without writing any project files to disk.

• Zero project footprint compilation — Snippets are compiled with Unity's bundled Roslyn csc first while preserving the in-memory compilation/execution flow. No .cs files are written under Assets/, no domain reload is triggered, no project state is touched beyond what the snippet itself does.
• Editor-ready before it runs — Each call refreshes the AssetDatabase and waits for any pending compilation to settle before compiling the snippet, so external file edits are picked up automatically without a separate request_recompile.
• Auto-Undo + structured logs (recommended template) — Implement IKitWrightCommand and use the injected ExecutionContext so every created / modified / destroyed object participates in editor Undo, and the changelog is returned to the agent.

using UnityEngine;
using UnityEditor;
using KitWright.Editor.Tools.Helpers;
using KitWright.Editor.Tools.Scripting;

public class CommandScript : IKitWrightCommand
{
    public void Execute(ExecutionContext ctx)
    {
        var go = GameObject.CreatePrimitive(PrimitiveType.Cube);
        ctx.RegisterObjectCreation(go);          // auto-Undo + tracked
        ctx.Log("Created {0}", go.name);
        ctx.ReturnValue = GameObjectSerializer.Describe(go, includeComponents: false);
    }
}

The response carries { logs, created, modified, destroyed, returnValue }, so the agent can verify exactly what changed without re-querying the scene.

The legacy template (public static string Run()) is still supported — useful for one-off inspection snippets where structured tracking is overkill.

When to reach for execute_code vs a specialized tool — execute_code shines for multi-step orchestration, novel reads, and situations where chaining 5–10 narrow tool calls would be noisier than one snippet. For single-field component edits, simple selection changes, or anything covered by an existing tool, prefer the dedicated tool — it is cheaper for the LLM to call and easier to verify.

Comparison With Coplay

The table below compares this repository with the publicly documented behavior of Coplay's open-source unity-mcp repository on GitHub (checked against v10.0.0 and the public docs site).

Source for Coplay column: CoplayDev/unity-mcp and its tool reference

Comparison With Unity AI Assistant

The table below compares this repository with Unity Technologies' official com.unity.ai.assistant package (v2.7.0-pre.2 as of 2026-05).

For a long-form comparison of the two approaches see KitWright MCP for Unity vs Unity AI Assistant detailed comparison (Chinese).

MCP Capabilities

The current open-source package exposes four high-value capability layers:

• Tools — 274 total tools in full, 43 focused tools in core
• Primary execution — execute_code for rich editor/runtime orchestration
• Prompts — workflow prompts like fix_compile_errors, runtime_validation, and create_playable_prototype
• Resources — project context, scene summaries, selection state, compile errors, console errors, MCP interaction history, plus resource templates for scene objects, components, and asset paths

Built-in Tools

KitWright MCP for Unity ships 273 tool functions across 57 modules (core profile exposes 53 of them).

📖 Every tool with its description: TOOLS.md.

📊 See PROFILER_TOOLS.md for the full Profiler tool reference, implementation notes, known limitations, and test report.

Adding Custom Tools

Your project can declare its own MCP tools with the same attributes the built-in tools use. Put the class in an Editor assembly — KitWright.Editor is autoReferenced, so no asmdef reference setup is needed:

using System.ComponentModel;
using KitWright.Editor.Tools;

[ToolProvider("MyTools")]
public static class MyCustomTools
{
    [Description("Spawns enemies at random positions in the scene")]
    public static string SpawnEnemies(
        [ToolParam("Number of enemies to spawn", Required = true)] int count,
        [ToolParam("Prefab path in Assets")] string prefabPath)
    {
        // Your implementation here
        return $"Spawned {count} enemies";
    }
}

Public static methods on the class are discovered automatically, converted to snake_case (spawn_enemies), and exposed via MCP with JSON Schema definitions generated from the parameter list. Mark a method [ReadOnlyTool] when it does not modify the scene or project, and clients receive annotations.readOnlyHint for it.

Project-declared tools are exposed under every profile, including the default core, since writing one is already an explicit opt-in — a custom tool would otherwise be invisible to the profile most clients connect with. They still appear in the Tool Exposure tab, so a profile configured there can turn them off like any built-in tool.

Architecture

MCP Server (HTTP JSON-RPC 2.0)
    └─ MCPRequestHandler (protocol handling)
        └─ MCPExecutionBridge
            └─ FunctionInvoker (reflection-based invocation)
                └─ Tool Functions (274 built-in tools across 57 modules)

External AI Client → HTTP Request → MCPRequestHandler → MCPExecutionBridge → FunctionInvoker → tool method

Requirements

• Unity 2022.3 or later
• com.unity.nuget.newtonsoft-json — pulled in automatically by UPM and OpenUPM installs; Asset Store imports offer it in the Package Manager dependency dialog
• com.unity.ugui and com.unity.test-framework — declared dependencies, already present in a default Unity project

Contributing

Contributions are welcome! Please read the Contributing Guide before submitting a PR.

Security

Found a vulnerability? Report it privately — see the Security Policy.

License

MIT — Free to use, modify, distribute, and integrate into commercial or open-source projects.

The KitWright name and logo are trademarks of the KitWright project and are not covered by the MIT license. You may not use the name or logo to brand derivative works or imply endorsement without prior written permission. All rights to the brand assets (files under Editor/Icons/) are reserved.
