Code got source control, types, tests, and pull requests. Design files got none of that. They're opaque blobs — you can't diff them, you can't review a change, and the same file can render differently on different machines.

That's a problem for people, and it's a bigger problem for AI. Agents can already write code and open pull requests, because code is text they can read and reason about. Drop them into a design tool and they go blind. Ask an agent to "make the heading brand red and tighten the layout" and there's nothing safe to grab onto — no stable target, no validation, no preview, no way to check the result.

Zenith fixes that. The goal is to make design files as safe to automate as code:

• Plain text you own — readable, diffable, yours forever.
• Stable IDs so every change is a reviewable patch, not a mouse drag.
• Deterministic rendering — the same file always produces the same pixels.
• Real validation — text fits, colors come from the design system, nothing falls off the page.
• Safe edits — every change is a typed transaction, checked and previewable before it lands, with a source diff and an audit record.

This is the most common mix-up, so it's worth being blunt: Zenith is the opposite of an image model like Nano Banana, ChatGPT image, or Grok Imagine.

An image generator gives you a flat picture. It's a bag of pixels — you can't open it up and move the logo, you can't force the headline to use your exact brand color, and asking for "the same thing but with a different date" gives you a different image. There's nothing to edit, review, or guarantee.

Zenith doesn't generate a picture. It generates the design itself — a structured, editable document where every element is real and addressable. An agent (or a person) can change one line, swap a color token, or regenerate a hundred on-brand variants, and every render is exact and repeatable. AI writes and edits the source; Zenith guarantees what it means and how it looks.

Most design tools are built for a human dragging boxes, and an automation API gets added later as an afterthought — a thin, limited layer over a model that was never meant to be driven by software.

Zenith is built the other way around. The foundation is a programmatic, text-based, deterministic engine. Agents, scripts, and the command line drive it directly. So automation isn't a side door; it's the front door.

Where this is going. Today Zenith is the engine and the CLI — the surface an AI agent drives. The roadmap is a visual editor where humans and AI agents co-edit the same .zen documents: a designer nudges a box, an agent restyles a hundred variants, and both operate on the identical deterministic core with the same validation, transactions, and version history. The GUI is a client on top of the engine — not a separate product with automation bolted on. Agent-first now; agent + human, together, next.

A .zen document flows through a single deterministic pipeline. Each stage is a separate crate with a clean contract boundary, so a future GPU backend, SVG export, or visual editor consumes the same scene IR:

_{Rendered by Zenith — source: assets/showcase/pipeline.zen.}

  design.zen  (KDL plain text)
       │  parse + validate           zenith-core   →  diagnostics (Error/Warning/Advisory)
       ▼
  Document AST  ──transaction ops──▶  Document AST'  zenith-tx  →  dry-run / apply + audit record
       │  compile                    zenith-scene + zenith-layout
       │    · resolve tokens, geometry, anchors
       │    · shape text (rustybuzz), wrap, hyphenate
       ▼
  Scene IR  (backend-neutral display list)
       │  render                     zenith-render
       ├─▶ PNG   (tiny-skia, byte-identical)
       └─▶ PDF   (vector, native CMYK, bleed / trim / crop)

  local history / undo / versions    zenith-session   (off the render path; never affects pixels)

Everything that touches the render path is deterministic and C-free: no time, no randomness, no HashMap, no unsafe, no C dependencies. The same bytes in always produce the same bytes out, on any machine.

• Scaffold & identity — zenith new creates a ready-to-edit document (minimal valid template, default .zen extension, parent dirs created) with a stable doc-id minted on first write; any .zen gains its identity and workspace store transparently on the first edit — no manual setup step.
• Plain-text .zen format — KDL v2 source with project / tokens / styles / document / page structure; every node carries a stable id.
• Design tokens — color (sRGB and native CMYK), dimension, number, fontFamily, fontWeight, gradient (linear/radial), shadow, filter, and mask, with alias chains and cycle detection.
• A full node set — rect, ellipse, line, polygon, polyline, text, code, image, frame, group, pattern, shape, connector, chart, instance, field, footnote, toc, and table, plus lossless pass-through of unknown nodes for forward compatibility.
• Real typography — rustybuzz shaping with bundled Noto Sans / Noto Sans Mono, font fallback, Knuth–Liang hyphenation, rich inline spans (bold/italic/underline/strikethrough/highlight/inline-code/link), threaded text flow (chains), drop-caps, tab-leaders, text runaround, and a font.glyph_missing diagnostic when a glyph is unavailable.
• Lean long-form text — keep the .zen small by sourcing body copy from an external .md/.txt file (text src="https://raw.githubusercontent.com/zenitheditor/zenith/HEAD/copy/article.md") or a data field, and opt into markdown (format="markdown") for both inline marks (**bold**, *italic*, ==highlight==, ++underline++, ~~strike~~, `code`, [label](https://github.com/zenitheditor/zenith/blob/HEAD/url)) and full block structure — # headings (h1–h6), blank-line paragraphs, blockquotes, ordered/unordered lists, fenced code blocks, and --- rules. Per-role typography (font, size, weight, fill, spacing) is controlled by block role="h1" … declarations at document, page, or text scope (cascade: text > page > doc), so the .zen owns all layout and styling while the .md file stays pure prose. For long-form content that exceeds one box, link multiple text nodes with chain for manual pagination; a text.overflow warning fires when content doesn't fit.
• Visual effects — linear & radial gradients, layered shadows, Gaussian blur, feathered masks, 12 Porter-Duff blend modes, opacity cascade, per-corner radius, and image fit / clip-shape / object-position.
• Anchors — 9-point placement relative to the page, a safe-zone, the parent container, or a sibling node (precedence: zone > sibling > parent > page), all materializing to explicit, deterministic geometry (absent anchor = byte-identical to hand-placed coordinates).
• Procedural recipes — a recipes provenance block records how a generated motif was made (kind, seed, generator, params, palette tokens, expanded node ids), inspectable and editable via typed recipe transactions, so procedural visuals stay reproducible and re-tunable.
• Transaction engine — a typed op set (set fill/stroke/geometry, add/remove/reparent/group, align/distribute, page ops, token ops, find-replace, pattern detach, and more) applied as dry-run by default, with referential-integrity and id-uniqueness enforcement, a source diff, a scene diff, affected node ids, and an audit record.
• Deterministic rendering — pixel-exact PNG via tiny-skia and print-ready PDF (native DeviceRGB/CMYK, MediaBox/TrimBox/BleedBox, no embedded timestamps), single page, all pages, or facing-page spreads. The scene IR can be dumped to JSON.
• Real PDF text, not pictures — PDF output embeds genuine, selectable / searchable / indexable text (subsetted fonts + ToUnicode) and clickable hyperlinks by default; set selectable=#false on a text/code node to render it as outlines instead. --embed-full-fonts embeds whole faces in place of subsets.
• Local history — per-document identity (ULID doc-id stamped in the file, ignored by the renderer), an ephemeral session DAG for undo/redo, and a durable content-addressed version store (SHA-256 + DEFLATE) with named versions and restore — entirely off the render path.
• Workspace scratch candidates — content-addressed .zen snapshots for design exploration, stored alongside history: scratch new records a candidate, scratch list/show review them, candidate transitions their lifecycle (draft → selected | rejected), promote --into <page> merges a selected candidate into the deliverable, and finalize drops the rejected ones. bundle/unbundle pack the whole per-doc store (history + scratch) into a portable, deterministic .zenithbundle.
• Library subsystem — embedded preset packs (@zenith/flowchart, @zenith/filters, @zenith/masks, @zenith/brand-kit); library add materializes an item into a self-contained document with libraries + provenance tracking. Inspect any item with zenith library show <pkg>#<item>.
• AI-asset provenance — when an image/illustration from an image model is composed in as an asset, Zenith records how it was made: ai-prompt, ai-model, ai-provider, ai-seed, ai-license, ai-source-rights, ai-safety-status, ai-reuse-policy (alongside the sha256 content lock). Run zenith schema asset for the full field list.
• Variable-data merge — role="data.<column>" bindings drive CSV mail-merge across text and image columns and multi-page templates, with a per-row JSON report and a byte-reproducible manifest.
• Self-describing CLI — zenith schema emits the authorable surface (every node kind + its attributes, the transaction op set, token types, and the page/asset/document/variant/diagnostics/brand surfaces) as human text or --json, so an agent discovers what it can author from the CLI itself rather than guessing — paired with zenith validate's actionable diagnostics for the fix loop.

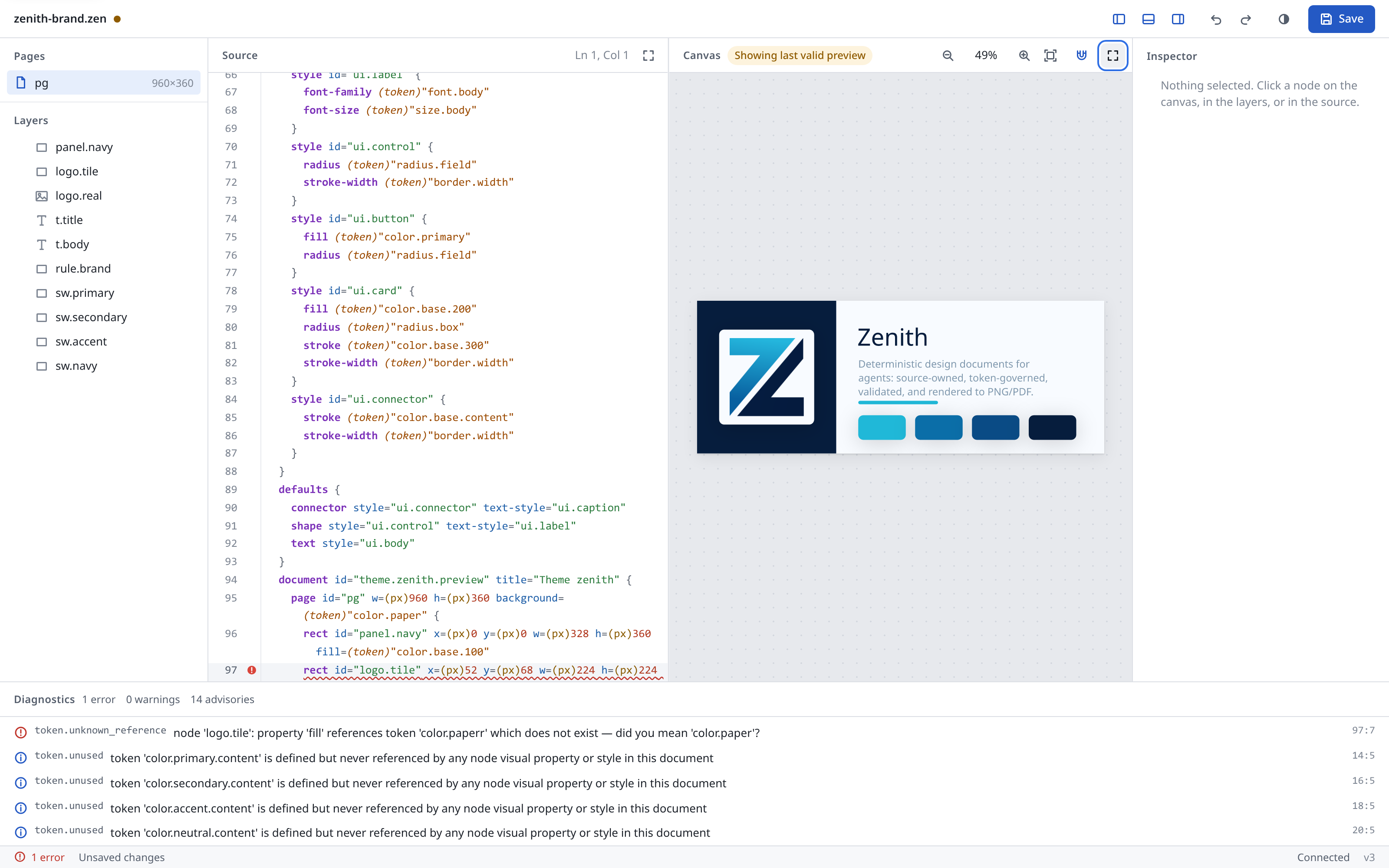

zenith validate file.zen is the step that makes design files safe to edit and trustworthy to ship. It's like a compiler's type-checker, but for a document: it reads the source and reports everything that is wrong, risky, or off-brand before you render or print — so an agent (or you) never has to "render it and eyeball it" to find out something broke.

It runs 70+ checks, each reported as a diagnostic with a stable code (e.g. text.overflow), a human message, the offending node id, and the source location. Every diagnostic has one of three severities:

What it actually checks, in plain terms:

• Structure & references resolve — every node id is unique and every reference points at something real: token refs, image assets, connector targets, fields, masters/sections (id.duplicate, token.unknown_reference, asset.unknown_reference, connector.missing_target). No dangling links, no typos that silently render nothing.
• Design-system discipline — visual properties must come from tokens, not raw hex (token.raw_visual_literal), so a brand change is one edit; it also flags cyclic, mistyped, or unused tokens (token.cyclic_reference, token.type_mismatch, token.unused).
• Nothing falls off or overflows — geometry is present and on-canvas, text actually fits its box, children stay inside their frame, and content respects page margins and safe zones (node.missing_geometry, text.overflow, text.fit_failed, frame.child_overflow, margin.violation, safe_zone.violation). Anchors must resolve to a real reference frame (anchor.unresolved_sibling, anchor.cycle).
• Readable & print-ready — text/background contrast is checked against WCAG 3 (APCA) (contrast.low); colorspace, bleed, and page parity are validated so a PDF is actually printable (document.invalid_colorspace, page.invalid_bleed).
• Model integrity — the newer variants, recipes, and provenance blocks are checked too, so generated/derived work stays consistent (variant.unknown_source, recipe.unknown_palette_token).

Why it matters:

• For people — you catch "the headline ran off the page", "this grey-on-grey is unreadable", "that color isn't a brand token", or "the print file has the wrong colorspace" before exporting, not after.
• For agents — zenith validate --json is a precise, machine-readable contract. An agent edits the source, validates, and knows whether the change is sound — the safety net that makes hands-off editing trustworthy.

_{Rendered by Zenith — source: assets/showcase/loop.zen.}

Two complementary ways to generate many outputs from one design — one varies size, the other varies content.

_{Rendered by Zenith — source: assets/showcase/variants.zen.}

Size / format variants (zenith variant)

Declare a variants block and expand one canonical page into many named target sizes (square, story, banner, ad slots) — each written as a native .zen page plus a rendered PNG, with optional per-target overrides (hide/show a node, swap text, change a fill). Source token edits propagate to every variant automatically, and anchored nodes reflow to each size.

variants {
  variant id="square" source="page.main" w=(px)1080 h=(px)1080 {
    override node="qr" visible=#false
  }
  variant id="story" source="page.main" w=(px)1080 h=(px)1920 { }
}

zenith variant poster.zen --out-dir out/ --manifest manifest.json

Generation is deterministic (same source → byte-identical outputs + manifest, schema: zenith-variant-manifest-v1).

Data mail-merge (zenith merge)

One template plus a CSV becomes one rendered design per row — for localized posts, personalized graphics, certificates, or campaign variants. Mark the variable text/image nodes with role="data.<column>" (the columns are the CSV header), then merge:

# in poster.zen — bind the headline to the CSV "name" column:
text id="hero.name" role="data.name" x=(px)60 y=(px)160 w=(px)680 h=(px)90 fill=(token)"color.ink" font-family=(token)"font.body" font-size=(token)"size.heading" { span "Name" }

zenith merge poster.zen people.csv --out-dir out/ --name-by name --manifest manifest.json

Every row renders independently and deterministically. --name-by names files by a column (Alice.png, Bob.png); --manifest writes a byte-reproducible batch record (template + data hashes and per-row provenance) for CI. Image columns work too — a role="data.logo" image node swaps its asset path per row.

A connector is a semantic arrow between two nodes. It has no authored geometry — you give it a from and a to node id, and the engine derives both endpoints from those targets' resolved boxes at compile time. Move either box and the connector reroutes automatically; the same source always produces the same path. It is a stroke-only leaf (no fill, no children); a stroke color is required for it to render.

• Endpoint anchoring — from-anchor / to-anchor pick where each end attaches. Use named grid anchors (top-left, bottom, center-right) for simple flowcharts, or divided outline anchors like 35/60 for polished diagrams that need several distinct links around one shape. Divided anchors start at top center and proceed clockwise; ellipses use their perimeter and rectangles walk their outline by edge length. The default, auto, picks the edge facing the other box.
• Ports — a page can declare semantic attachment points with ports { port node="agent" id="memory.vector" anchor="38/60" }; connectors can then use from="agent#memory.vector" or to="store#in". Component ports project through instances, so connector from="agent.instance#out" stays tied to the component's internal geometry without copying coordinates.
• Route modes (route=) — straight (default) draws a direct line; orthogonal draws a right-angle elbow; avoid runs an obstacle-avoiding orthogonal router that bends the path around the other node boxes (falling back to a plain elbow when no clear path exists).
• Self-loops — when from and to name the same node, the connector becomes a small loop off one edge (the side taken from the anchor, default top).
• Arrowheads — marker-start / marker-end = arrow add a filled arrowhead in the stroke color (default none); heads orient along the actual routed segment, so they land axis-aligned.
• Line jumps — a page-level line-jumps="arc" or line-jumps="gap" makes connectors hop where they cross: the crossing line gets a small semicircular bump (arc) or a broken gap (gap) so overlapping arrows read clearly. Deterministic — the horizontal line hops over the vertical one — and it applies to nested connectors too. Absent (none / default) renders byte-identically.
• Styling — stroke (required), stroke-width, opacity, rotate, and a style ref, following the same property/style cascade as the other primitives.

page id="pg" w=(px)640 h=(px)360 line-jumps="arc" {
  ports {
    port node="n.start" id="out" anchor="1/4"
    port node="n.end" id="in" anchor="3/4"
  }
  shape id="n.start"  kind="process" x=(px)40  y=(px)150 w=(px)130 h=(px)60 fill=(token)"c.node" stroke=(token)"c.line" { span "Start" }
  shape id="n.end"    kind="process" x=(px)470 y=(px)150 w=(px)130 h=(px)60 fill=(token)"c.node" stroke=(token)"c.line" { span "Finish" }
  shape id="n.block"  kind="process" x=(px)290 y=(px)130 w=(px)70  h=(px)100 fill=(token)"c.block" stroke=(token)"c.blockline" { span "Block" }

  // Auto-routed flow bends around the Block instead of crossing it…
  connector id="e.flow"  from="n.start#out" to="n.end#in" route="avoid" marker-end="arrow" stroke=(token)"c.flow"  stroke-width=(token)"cw"
  // …and where a second connector crosses it, the page's line-jumps hops it.
  connector id="e.cross" from="n.top"   to="n.bottom" marker-end="arrow"               stroke=(token)"c.cross" stroke-width=(token)"cw"
}

See examples/connector-routing.zen for a complete runnable document.

A pack exports named items addressed <package>#<item>, materialized into a document with zenith library add. Items come in three kinds: component (a node group, placed as an instance), token (a filter/mask token), and action (a canned transaction).

A pack is stored in one of two formats:

• A .zen file — the feature-rich format: tokens, components, and actions, authored directly. It declares its own identity with a library self-entry.
• A directory of *.svg — the plug-and-install format, for icon sets. Each *.svg is one icon; its id is the file stem. There is nothing to author: drop a folder into <project>/libraries/ and it is a pack, addressed @local/<dirname>#<stem>.

SVG icons are converted to native, editable path nodes at add-time — not embedded as an opaque raster or an <image> reference. Restyle them with instance overrides (override ref="icon.0" stroke=(token)"brand" …) like any other geometry. Conversion is deterministic and scoped: adding one icon converts one icon.

The embedded @zenith/icons-lucide pack carries the complete Lucide set (1745 icons, ISC AND MIT). Because that is far too many to enumerate, discovery is search-first:

zenith library search sync                       # → refresh-cw (matched on its alias)
zenith library search arrow --category navigation
zenith library search cloud --kind component --limit 5
zenith library show  @zenith/icons-lucide#house  # format, license, aliases, tags, geometry
zenith library add   @zenith/icons-lucide#house --into poster.zen --page pg --at 40,40

Search is ranked, not a substring scan: an item named for your query beats one aliased to it, which beats one merely tagged with it — so home returns house, not lamp. Every query term must match, and categories filter rather than rank.

An optional library.kdl beside the icons supplies identity and that search metadata; without one, icons are still findable by their filename:

library id="@acme/icons" version="1.0.0" {
  license "CC0-1.0"
  icon "rocket-launch" aliases="liftoff" tags="spaceship booster" categories="space"
}

A project pack shadows an embedded pack of the same id, in either format.

Run zenith <command> --help for flags (each prints a description and an example). Every command supports --json for machine-readable output.

Zenith keeps a local edit history per document, entirely off the render path — it never changes the pixels. On the first edit, a document is given a stable identity: a ULID doc-id stamped into the file and ignored by the renderer. From then on, every engine edit (tx --apply, library add, an undo/redo/restore) is recorded as a full snapshot (state, not an op-log), so history survives even hand-edits.

zenith tx poster.zen recolor.json --apply   # an edit — recorded automatically
zenith undo poster.zen                       # step back, rewriting the file in place
zenith redo poster.zen                       # step forward again
zenith history poster.zen                    # list the timeline (--json for tooling)

zenith version poster.zen "launch-v1"        # save a NAMED version, kept indefinitely
zenith restore poster.zen launch-v1          # rewrite the doc to that version
zenith restore poster.zen @head~1            # …or to a revspec: v2, @head~1, @latest:named, a name

zenith sync poster.zen                        # capture an out-of-band change (GUI / hand-edit / git checkout)

There are two tiers. Undo/redo walk an ephemeral session timeline — fast, local, for in-progress work. Named versions are durable, content-addressed checkpoints (SHA-256 + DEFLATE) retained until you remove them; restore can jump to any of them. sync is how an edit made outside the engine gets folded back in so the history stays complete. History recording is best-effort: if it can't write, your file still saves — the edit is never blocked.

Zenith ships a skill that teaches AI coding agents how to drive the CLI — the agentic author → validate → render → edit loop, design recipes, and the token/brand discipline that --help can't carry. Install it for whatever agents you use:

zenith plugin install                  # auto-detect installed agents, install for your user
zenith plugin install --claude --codex # choose specific agents
zenith plugin install --all            # every supported agent
zenith plugin install --claude --scope project   # into ./ for one repo
zenith plugin list                     # see what's installed where

Claude Code, Codex, and OpenCode get the full folder skill (reference packs, templates, and themes); other agents (Cursor, Windsurf, Aider, Zed, Gemini, Copilot, Continue, Kiro, Antigravity) get a single self-contained rule file that points back at the self-documenting CLI. Writes are idempotent — re-run any time to update, or zenith plugin uninstall to remove.

MCP server (remote / CI / hosted agents)

For agents that discover capabilities through the Model Context Protocol — or for CI and hosted/SaaS pipelines — Zenith runs as a first-class MCP server. It is not a thin CLI wrapper: tool results are trimmed structured JSON, schema detail is fetched on demand via a single zenith_schema tool (so the model never carries every node/op schema), large or binary artifacts (renders, big trees, diffs) come back as resource links into a content-addressed store instead of being inlined, and documents are addressable by doc-id so agents stop juggling paths. The full author loop is exposed — zenith_schema, zenith_validate, zenith_inspect, zenith_tokens, zenith_tx, zenith_render, zenith_fmt, zenith_merge, zenith_theme_new, plus the scratch/candidate/promote/finalize workspace tools.

Run it over stdio (the default transport):

zenith mcp

Point any MCP-aware client at it:

{
  "mcpServers": {
    "zenith": { "command": "zenith", "args": ["mcp"] }
  }
}

…or, for Claude Code: claude mcp add zenith -- zenith mcp.

Remote / hosted serving. Build with the optional http feature and serve native Streamable-HTTP at a single /mcp endpoint (kept behind an opt-in feature so the default build stays dependency-light and C-free):

cargo install --path zenith-cli --features http --locked
zenith mcp --http 127.0.0.1:8080
# test it:
curl -s -XPOST http://127.0.0.1:8080/mcp \
  -H 'Content-Type: application/json' \
  -d '{"jsonrpc":"2.0","id":1,"method":"tools/list"}'

The workspace store (scratch candidates, version history, rendered resource artifacts) lives under $XDG_DATA_HOME/zenith (~/.local/share/zenith by default); set ZENITH_DATA_DIR to relocate it for isolated/hosted deployments.

Local agents should prefer the CLI + skill, not MCP. Running zenith directly (taught by zenith plugin install) is the fastest path when the environment can run the binary. Reach for the MCP server when it can't — remote hosts, CI, sandboxes, or hosted/production services where you want the full read+write surface behind a protocol. The server is first-class there.

The repo ships a server.json (MCP registry manifest). The manual Publish MCP workflow publishes the matching npm launcher and registry entry for a selected stable tag (via GitHub OIDC — no registry token needed), so Zenith stays discoverable from MCP directories and can be launched by clients through npx -y @zenitheditor/zenith-mcp.

• MCP Registry name: mcp-name: io.github.zenitheditor/zenith

Zenith is a Rust workspace. Each crate owns one concern and exposes a stable contract; zenith-core depends on nothing else in the tree.

Because a Zenith file is just text, it lives wherever your code lives. Commit it to git. Review design changes in a pull request, side by side with the diff. Render it in CI to catch a broken layout before it ships. Generate variants in a pipeline. Roll back like any other file. Design stops being a separate world you export to and from, and becomes part of the build.

• AI and agent builders who need to generate and edit visuals reliably, not by screenshot-and-pray.
• Engineering teams who want design assets in the repo, reviewed in PRs, and built in CI.
• High-volume producers — marketing, publishing, localization — who need lots of correct variants.
• Tool builders who'd rather build on an open format than a closed cloud API.

The public showcase lives at zenitheditor/zenith-showcase and is linked here as the zenith-showcase submodule.

It is the place for reusable Zenith examples: .zen source, rendered outputs, visual recipes, actions, filters, backgrounds, posters, flyers, books, magazines, ads, diagrams, presentations, and other generated design work.

Only put files in the showcase if you have the rights to share them and you allow others to reuse the submitted source, outputs, and assets under the declared license. Private, client, portfolio-only, or custom-licensed work should be linked from the showcase's external gallery instead; licensing for external work stays with the owner.
