Climate-Risk Analyst Agent

Live demo: https://climate-risk-agent-714882950125.us-central1.run.app/ (a public Google Cloud Run deployment).

This is an agent, not a chatbot. Ask a plain-language question, for example "How risky are heatwaves in Tokyo over the next 5 days?", and it returns a typed, cited risk report built from real forecast data and IPCC climate science. When a question falls outside what it can actually check, it refuses instead of guessing.

The measurement moat

• ERA5 GEV hazard statistics. Every hazard number comes from a Generalized Extreme Value distribution fit to 60+ years of ERA5 annual maxima at the query location. Risk severity is where the forecast peak lands on that location's own return-level curve, not a fixed threshold, and every return level ships with a 90% bootstrap confidence interval.
• Non-stationary GEV. Alongside the stationary fit, a drifting-location GEV checks whether the climate at that location is actually warming, using a likelihood-ratio test to decide. When the trend is real, return levels are reported "effective" at the latest year instead of averaged across six decades. Berlin comes back at +0.76°C per decade (p < 0.0001) with effective levels; Delhi comes back stationary (p = 0.56), which agrees with the published literature on aerosol masking suppressing South Asian heat trends.
• IPCC AR6 RAG with citations that have to hold up. Every citation is checked structurally against the pages actually retrieved for that question. If the model can't point to a real retrieved page, it refuses rather than cite one anyway.

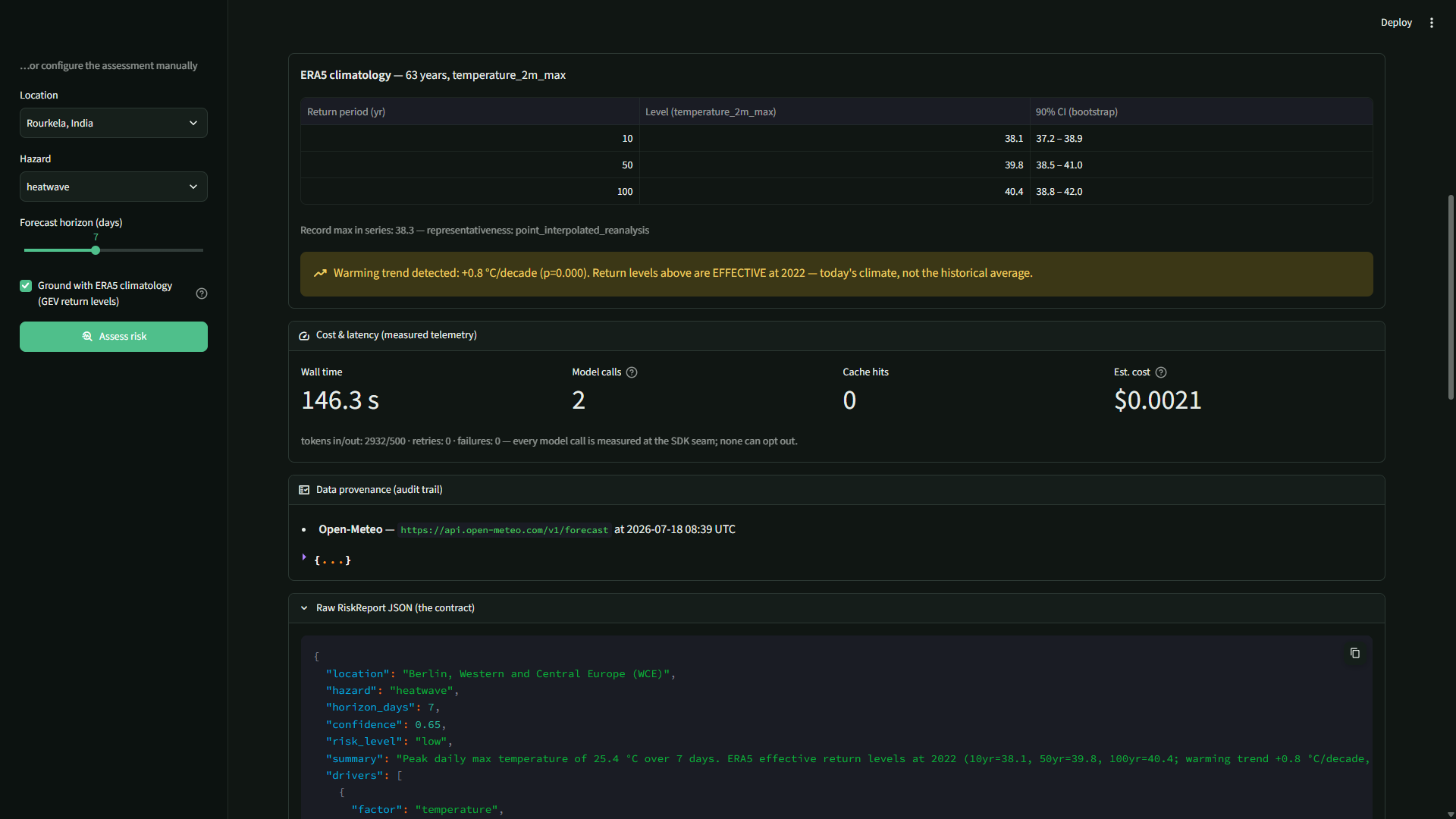

The same report, scrolled down: the ERA5 return-level table with bootstrap confidence intervals, the warming-trend banner, and the measured cost and latency for that run.

How it works

A free-text question moves through parsing, geocoding, and IPCC AR6 region mapping before it reaches the agent. From there a four-node LangGraph agent (plan, forecast, research, synthesize) either produces a typed RiskReport or refuses.

flowchart LR
    Q[free-text question] --> PARSE[parse<br/>location · hazard · horizon]
    PARSE --> GEO[geocode<br/>Open-Meteo]
    GEO --> REGION[map to IPCC AR6 region<br/>Iturbide-2020 polygons]
    REGION --> PLAN[agent: plan<br/>scope check]
    PLAN -->|unsupported hazard| REFUSE[refusal<br/>valid typed output]
    PLAN --> FORECAST[agent: forecast]
    FORECAST --> RESEARCH[agent: research]
    RESEARCH --> SYNTH[agent: synthesize]
    SYNTH --> REPORT[RiskReport<br/>typed · cited · grounded]

    subgraph HAZARD [ERA5 to GEV hazard statistics]
        ERA5[ERA5<br/>60+ yr annual maxima] --> GEV[stationary + drifting-location GEV]
        GEV --> LRT[likelihood-ratio test<br/>is the trend real?]
        LRT --> LEVELS[return levels + 90% bootstrap CI<br/>effective at latest year if trend holds]
    end
    FORECAST -.-> HAZARD
    HAZARD -.-> SYNTH

    subgraph RAG [IPCC AR6 RAG]
        HYBRID[BM25 + dense hybrid<br/>RRF fusion] --> VALID[citations validated<br/>against retrieved pages]
    end
    RESEARCH -.-> RAG
    RAG -.-> SYNTH

Evaluation

• Dev set: 45 questions, used to steer development choices like chunking and retrieval configuration.
• Test set: 105 new questions, written after the dev set existed, never used to tune anything, frozen by SHA-256 so neither set can quietly change.

Held-out results (second exposure, on the exact configuration deployed):

• Retrieval: R@3 87%, R@5 91%, R@10 96% on answerable questions.
• Zero false answers across the full held-out refusal matrix. No confabulation.
• Citation validity: 96%. Numeric provenance: 88%.
• Measured cost about $0.003 per question, p50 latency 3.9 s.

Every eval artifact records the model that produced it, because a model swap is invisible to a test suite. When the answering model was changed without re-running these evals, the benchmark caught a usefulness regression that 240 passing tests did not: see adr/0001-answering-model-selection.md.

Refusals are scored on a 4-cell confusion matrix (correct answer, correct refusal, false refusal, false answer). One false answer on that matrix blocks release.

Operations

• Structured logging and per-request telemetry measured at the single SDK seam every model call passes through: latency, tokens, retries, and cost. Measured on the held-out run: about $0.003 per question, p50 3.9 s. Reasoning tokens are counted as billed output, and a model with no price entry reports its cost as unknown rather than as zero.
• Async FastAPI service (POST /report) with per-request API-key access control and a /metrics endpoint.
• Two MCP servers (weather, IPCC RAG) exposing the same tools over the Model Context Protocol.
• Disk-backed answer cache for repeat queries.
• Docker image, plus CI running ruff, mypy, and pytest. 246 tests green.

Run it

uv sync
uv run streamlit run ui/app.py

With Docker:

docker build -t climate-risk-agent .
docker run -p 7860:7860 -e GEMINI_API_KEY=... climate-risk-agent

The live demo runs on Google Cloud Run. For deployment (Cloud Run, or local Docker and other hosts), see DEPLOY.md.

Use the MCP servers

Both servers speak stdio. From the repo root, point any MCP client at them:

{
  "mcpServers": {
    "climate-weather": {
      "command": "uv",
      "args": ["run", "--no-sync", "python", "-m", "tools.weather_mcp"]
    },
    "climate-ipcc-rag": {
      "command": "uv",
      "args": ["run", "--no-sync", "python", "-m", "tools.ipcc_mcp"]
    }
  }
}

Both servers target MCP protocol 2026-07-28 (mcp 2.0.0), the current revision. Every tool is annotated read-only with a human-readable title and an open- or closed-world hint, publishes an outputSchema, and is listed in a deterministic order. Two tests boot each server as a real subprocess and speak the protocol to it, rather than calling the tool functions in-process.

Retrieval is hybrid, so both IPCC tools embed the query and need credentials in the server process: either GOOGLE_GENAI_USE_VERTEXAI=true with GOOGLE_CLOUD_PROJECT, or GEMINI_API_KEY.

A client does not hand the server your shell. It passes a short allow-list of variables (PATH, APPDATA, TEMP, ...) so that a server cannot harvest your secrets, which means a client-launched server starts with no credentials. Supply them either in the client's own env block, or by copying .env.example to .env -- the IPCC server reads that at startup and never overrides a value the client did pass.

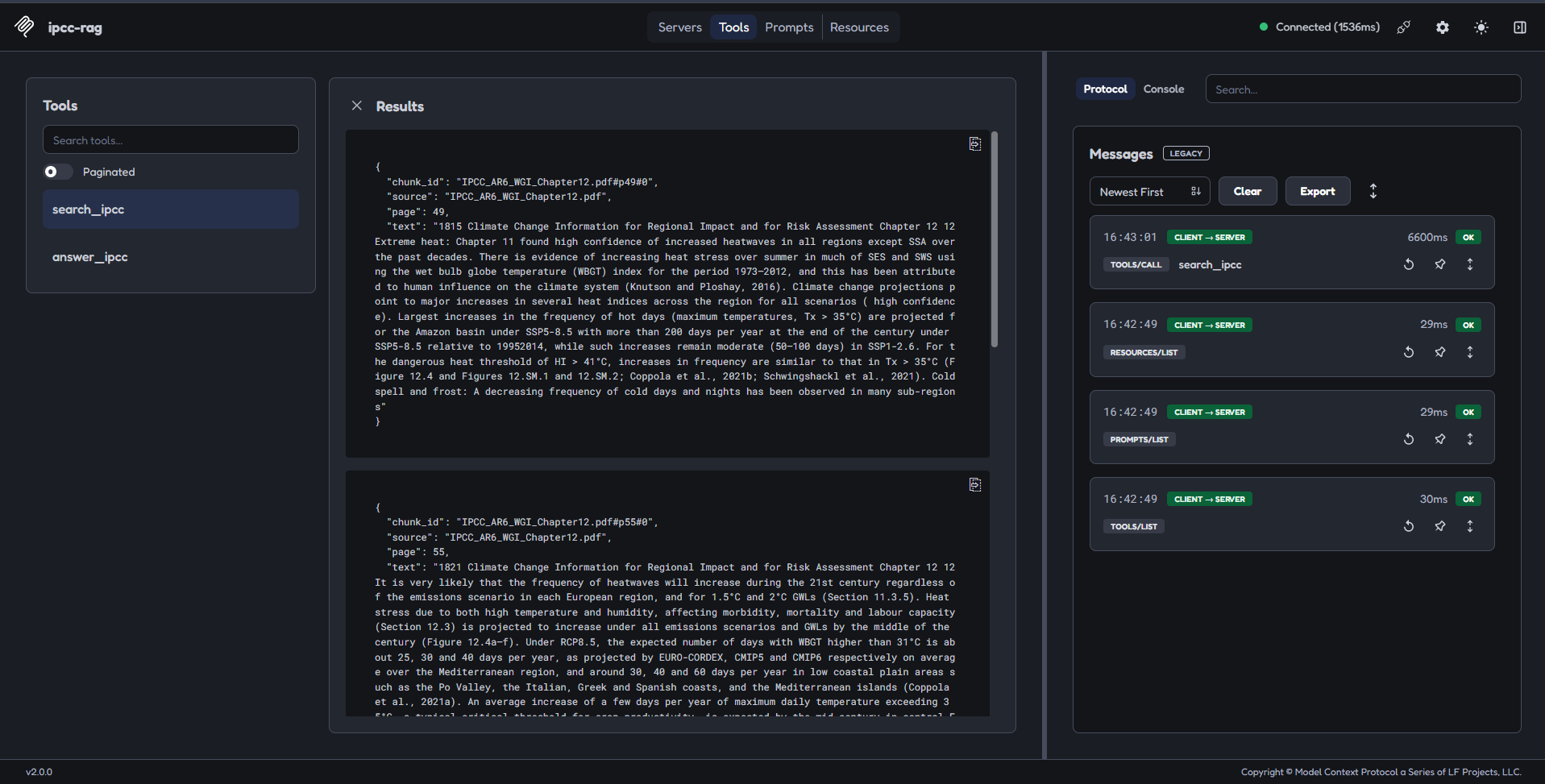

To explore the tools by hand: uv run mcp dev tools/ipcc_mcp.py.

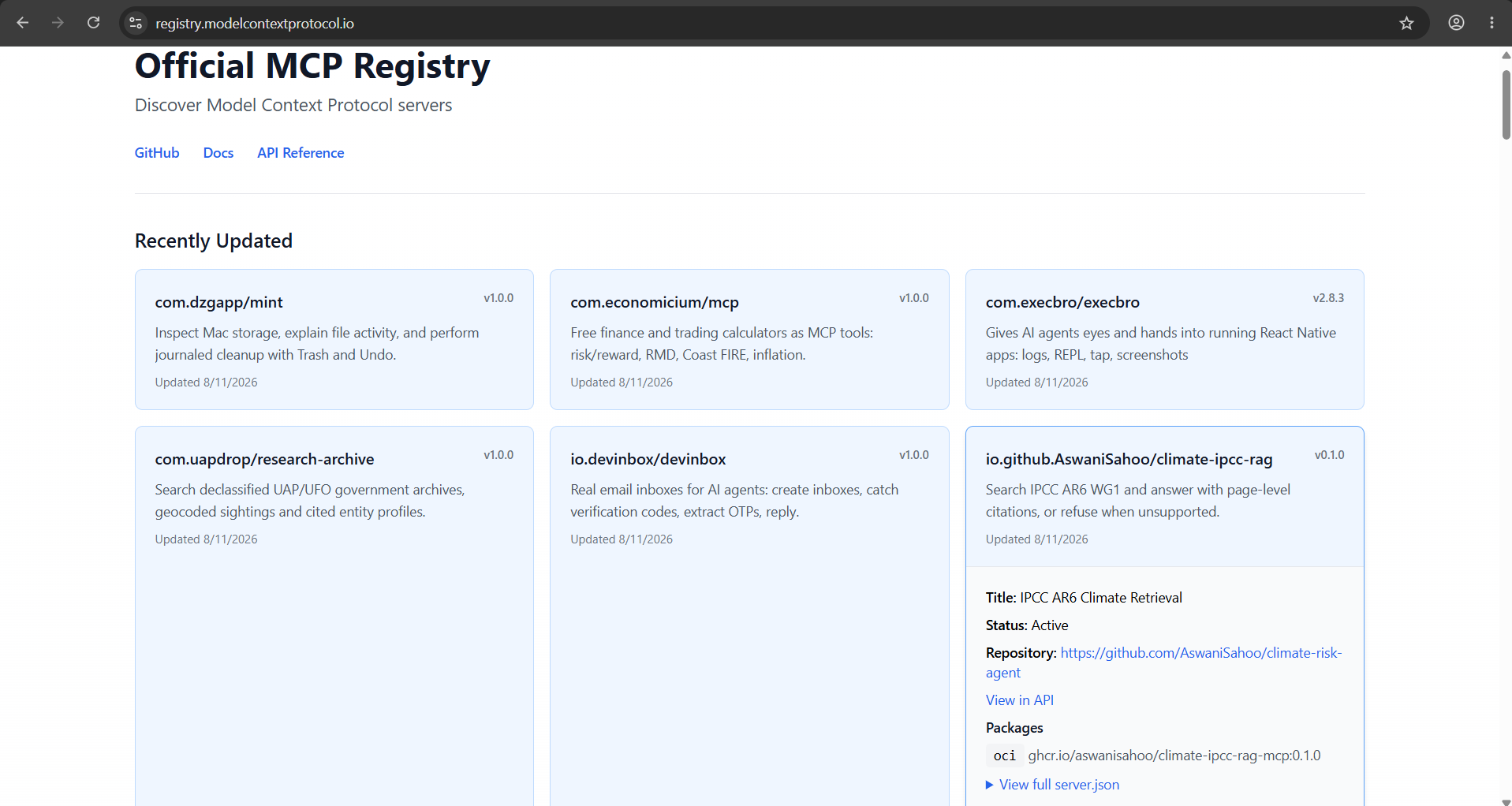

Published on the official MCP registry

The IPCC RAG server is published on the official MCP registry as io.github.AswaniSahoo/climate-ipcc-rag (v0.1.0), backed by a public OCI image on GHCR (ghcr.io/aswanisahoo/climate-ipcc-rag-mcp:0.1.0). Any MCP client that supports Docker/OCI transport can install it directly from the registry.

Tech stack

Python, LangGraph, Google Gemini 2.5 Flash (generation) + gemini-embedding-2 (dense) on Vertex AI (global endpoint), BM25 + dense hybrid retrieval (RRF fusion), Pydantic, FastAPI, Streamlit, MCP Python SDK, scipy, Docker, GitHub Actions.

Limitations

• ERA5 is gridded reanalysis, not station observations. Hazard stats describe an interpolated grid cell near the query location, not a measurement taken there.
• Scope is heat, extreme precipitation, and wind. Anything else should get a refusal, not an answer.
• The scope guard that keeps out-of-scope hazards away from the LLM is lexical (keyword-based). A paraphrase that avoids the known vocabulary could slip past it.

Data: forecasts and ERA5 climatology from Open-Meteo (CC-BY 4.0); climate assessment from IPCC AR6 WG1, reused for research under IPCC's terms.

See LIMITATIONS.md for the full list and SECURITY.md for the threat model. Shipped features and what's next: ROADMAP.md.
