Docker Android

Docker-Android is a docker image built to be used for everything related to Android. It can be used for Application development and testing (native, web and hybrid-app).

Sponsors

Proxy-Seller gives you reliable proxy infrastructure for any workflow: private residential, mobile (4G/5G/LTE), ISP, and datacenter IPv4/IPv6 proxies, all with HTTP(S) and SOCKS5 support. Tap into 47M+ residential IPs across 220+ locations, target exactly the country, city, or ISP you need, and count on 99.7% uptime backed by 24/7 support. Get 15% off with promo code BUDTMO.

Advantages of using this project

1. Emulator with different device profile and skins, such as Samsung Galaxy S6, LG Nexus 4, HTC Nexus One and more.
2. Support vnc to be able to see what happen inside docker container
3. Support log sharing feature where all logs can be accessed from web-UI
4. Ability to control emulator from outside container by using adb connect
5. Integrated with other cloud solutions, e.g. Genymotion Cloud
6. It can be used to build Android project
7. It can be used to run unit and UI-Test with different test-frameworks, e.g. Appium, Espresso, etc.
8. It support (http) docker-android MCP-Server (beta-version)
9. It support Appium MCP

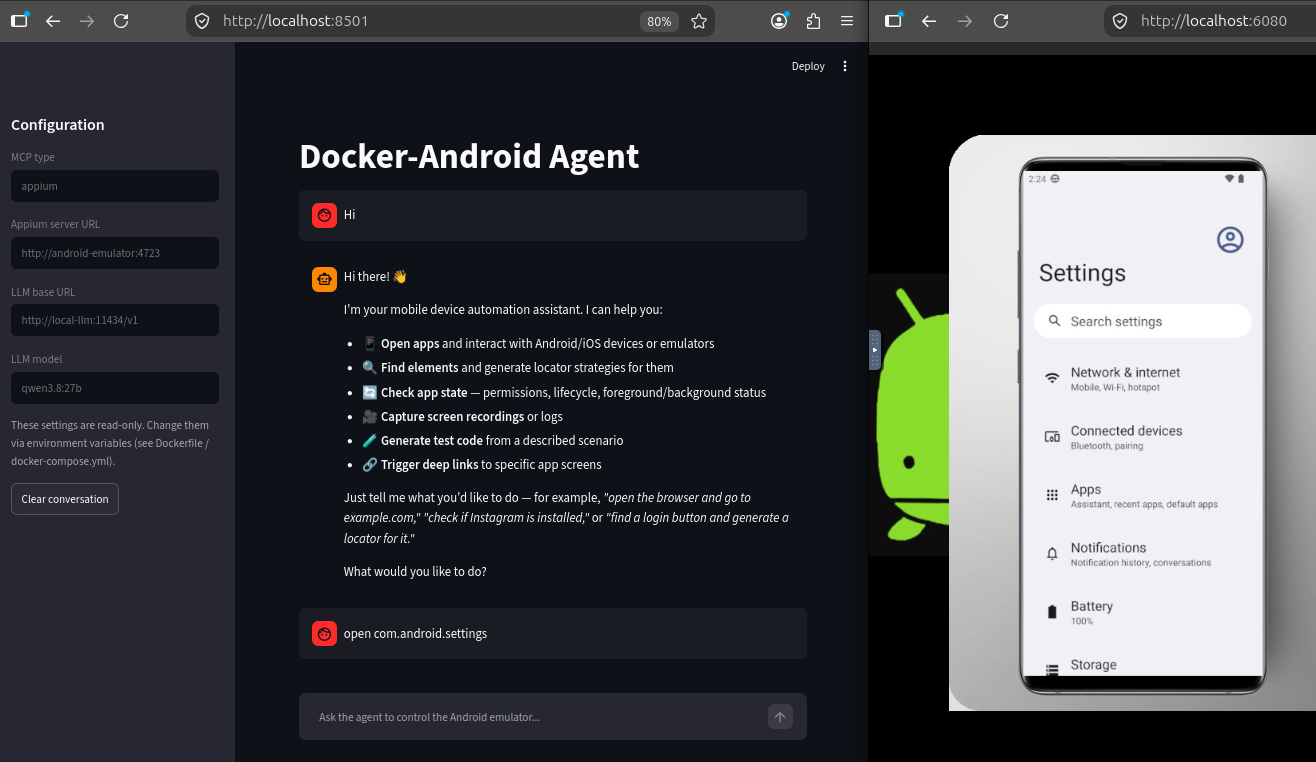

10. It support AI-Agent (beta-version) - supported local-LLM server: Ollama, VLLM

List of Docker-Images

List of Devices

Requirements

1. Docker is installed on your system.

Quick Start

1. If you use Ubuntu OS on your host machine, you can skip this step. For OSX and Windows OS user, you need to use Virtual Machine that support Virtualization with Ubuntu OS because the image can be run under Ubuntu OS only.

2. Your machine should support virtualization. To check if the virtualization is enabled is:

   CodeCopy

   sudo apt install cpu-checker
   kvm-ok


3. Run Docker-Android container

   TerminalCopy

   docker run -d -p 6080:6080 -e EMULATOR_DEVICE="Samsung Galaxy S10" -e WEB_VNC=true --device /dev/kvm --name android-container budtmo/docker-android:emulator_11.0


4. Open http://localhost:6080 to see inside running container.

5. To check the status of the emulator

   TerminalCopy

   docker exec -it android-container cat device_status


Persisting data

The default behaviour is to destroy the emulated device on container restart. To persist data, you need to mount a volume at /home/androidusr: docker run -v data:/home/androidusr budtmo/docker-android:emulator_11.0

WSL2 Hardware acceleration (Windows 11 only)

Credit goes to Guillaume - The Parallel Interface blog

Microsoft - Advanced settings configuration in WSL

1. Add yourself to the kvm usergroup.

   CodeCopy

   sudo usermod -a -G kvm ${USER}


2. Add necessary flags to /etc/wsl.conf to their respective sections.

   CodeCopy

   [boot]
   command = /bin/bash -c 'chown -v root:kvm /dev/kvm && chmod 660 /dev/kvm'


   Then, using PowerShell, open a notepad on notepad $env:USERPROFILE\.wslconfig. Inside, put these other flags:

   CodeCopy

   [wsl2]
   nestedVirtualization=true


3. Restart WSL2 via CMD prompt or Powershell

   CodeCopy

   wsl --shutdown


command = /bin/bash -c 'chown -v root:kvm /dev/kvm && chmod 660 /dev/kvm' sets /dev/kvm to kvm usergroup rather than the default root usergroup on WSL2 startup.

nestedVirtualization flag is only available to Windows 11.

If this setup does not work, you may have an old WSL version. In that case, ignore \.wslconfig and put everything on /etc/wsl.conf, including the [wsl2] flag.

Use-Cases

1. Build Android project
2. UI-Test with Appium
3. Control Android emulator on host machine
4. SMS Simulation
5. Jenkins
6. Deploying on cloud (Azure, AWS, GCP)

Custom-Configurations

This document contains information about configurations that can be used to enable some features, e.g. log-sharing, etc.

Genymotion

For you who do not have ressources to maintain the simulator or to buy machines or need different device profiles, you can give a try by using Genymotion SAAS. Docker-Android is integrated with Genymotion on different cloud services, e.g. Genymotion SAAS, AWS, GCP, Alibaba Cloud. Please follow this document for more detail.

Emulator Skins

The Emulator skins are taken from Android Studio IDE and Samsung Developer Website

USERS

PRO VERSION

Due to high requests for help and to be able to actively maintain the projects, the creator has decided to create docker-android-pro. Docker-Android-Pro is a sponsor based project which mean that the docker image of pro-version can be pulled only by active sponsor.

The differences between normal version and pro version are:

List pro-version images:
