⚡️ Azdroid — High-Performance Android Screen Mirroring & Workstation for macOS & Windows

Next-gen Android screen mirroring, desktop control, and Model Context Protocol (MCP) server for macOS and Windows over Wi-Fi & USB. Built with Flutter Desktop & scrcpy.

_{macOS: Universal Binary (31 MB) • Apple Silicon (M1/M2/M3/M4) & Intel Core • macOS 12.0+}
_{Windows (Preview): portable ZIP (25 MB) • Windows 10/11 x64 • what works on each platform}

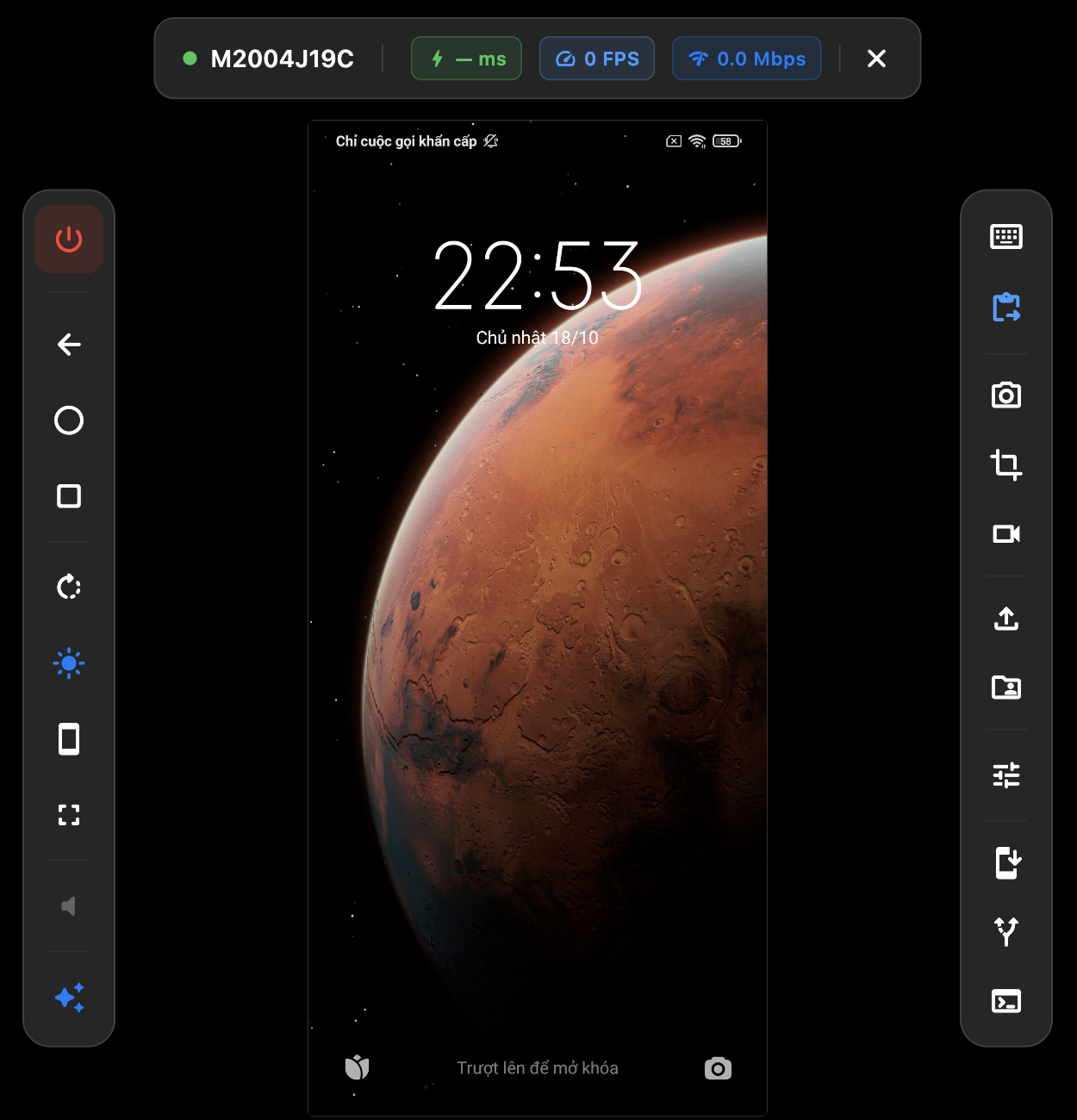

Azdroid mirroring workspace on macOS: the phone screen between two vertical control docks, with the latency, FPS, and bitrate header

🚀 Why Azdroid?

Azdroid turns your Mac or Windows PC into the ultimate Android command center. Whether you are an Android developer debugging apps, a content creator recording mobile gameplay, or a power user seeking desktop control over your phone, Azdroid delivers:

⚡️ Low-Latency Native Decoding: Hardware H.264 encoding on the phone, decoded natively on the desktop (Apple VideoToolbox on macOS, Media Foundation on Windows) at up to 60 FPS, at the phone's own resolution.
📶 Dual Connection (Wi-Fi & USB): Subnet ARP auto-discovery, mDNS wireless debugging, 1-click USB-to-Wi-Fi switch, or instant plug-and-play USB cable mode.
🔋 Screen-Off Streaming: Keep the physical phone screen dark while you keep mirroring and controlling it, for privacy and less battery drain from the display.
🔒 100% Private & P2P: Zero cloud servers, zero analytics, and zero telemetry. All video, audio, and inputs remain strictly inside your local network.

📸 Visual Showcase

1. Subnet Discovery & Built-in Feature Catalog

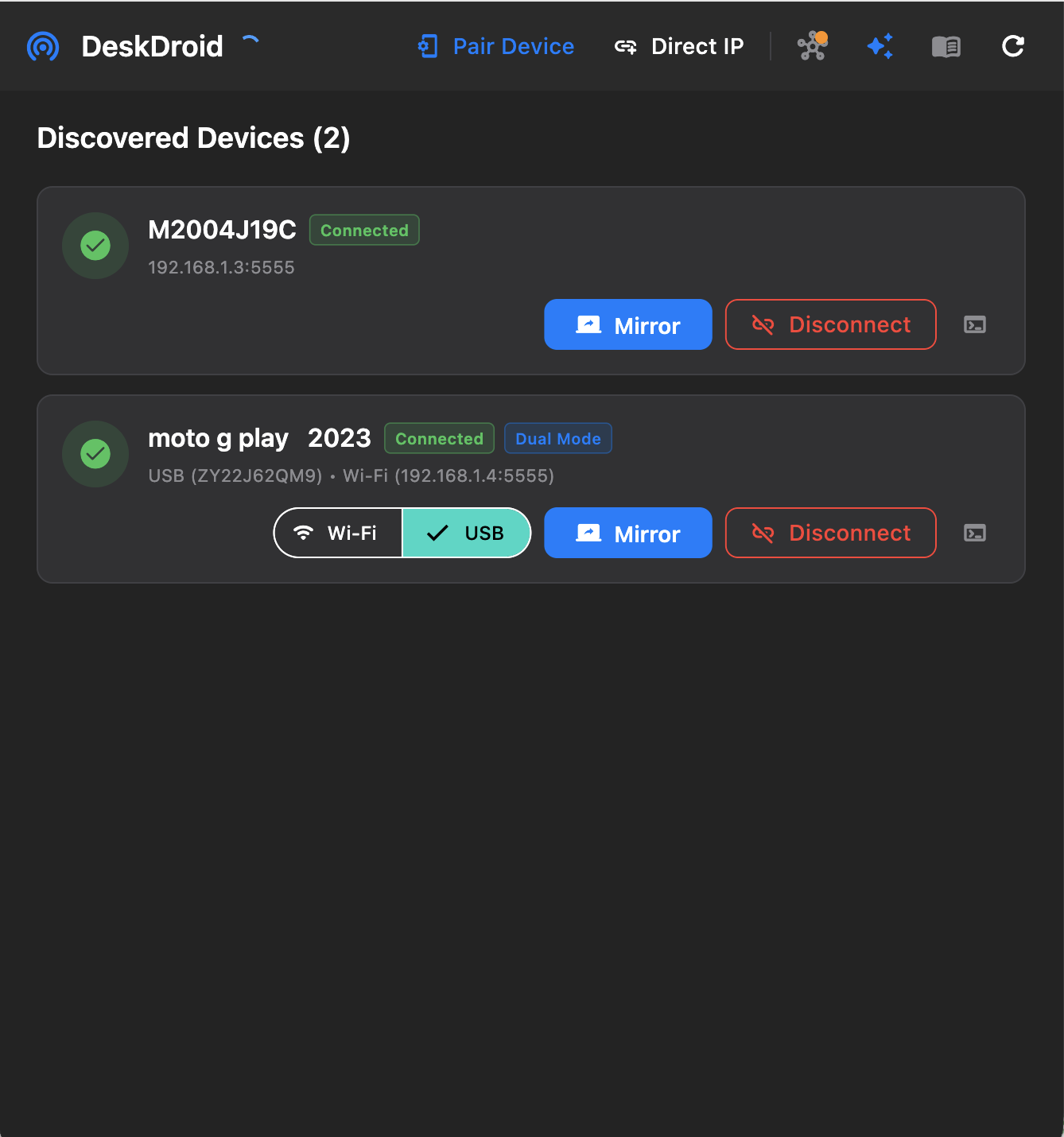

Azdroid device list with two connected phones, a Wi-Fi/USB switch for a dual-mode device, and the MCP status icon

Multi-Device Discovery
_{Subnet auto-scan, connection badges, Wi-Fi/USB switch for dual-mode devices & 1-click mirroring.}

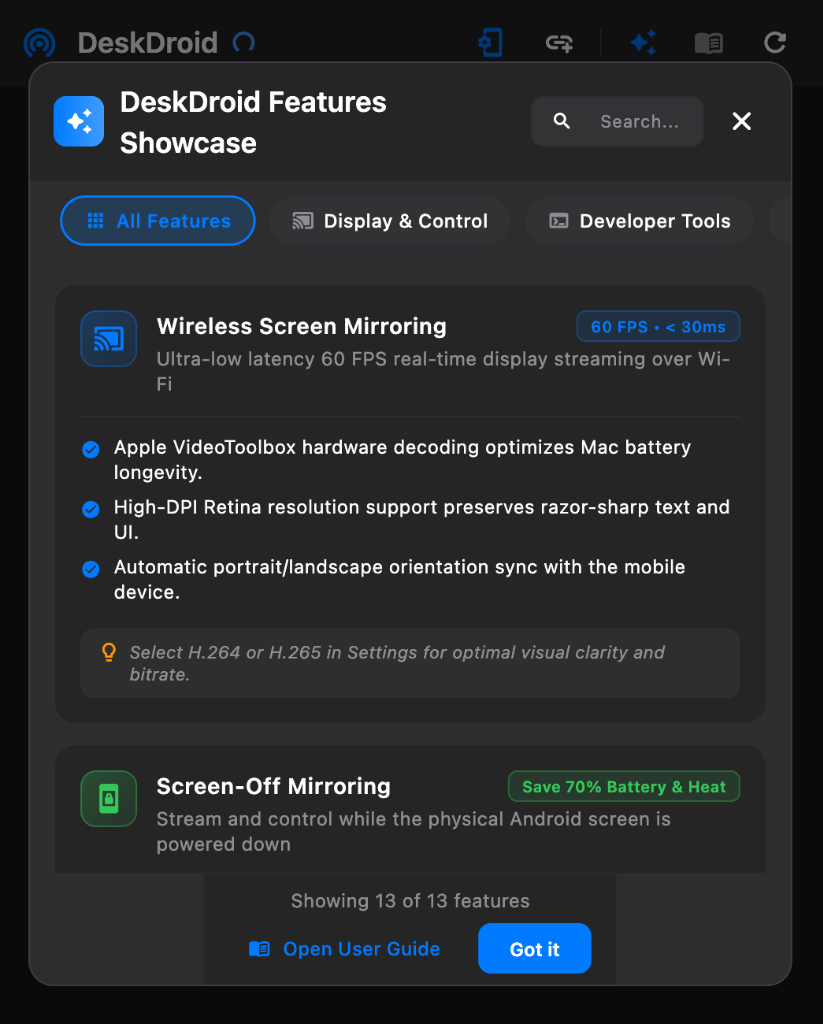

Azdroid Built-in Feature Showcase and Interactive Catalog

Interactive Feature Showcase
_{Categorized catalog with performance badges, highlights & pro tips.}

2. Developer Inspection: Logcat & Intent Dispatcher

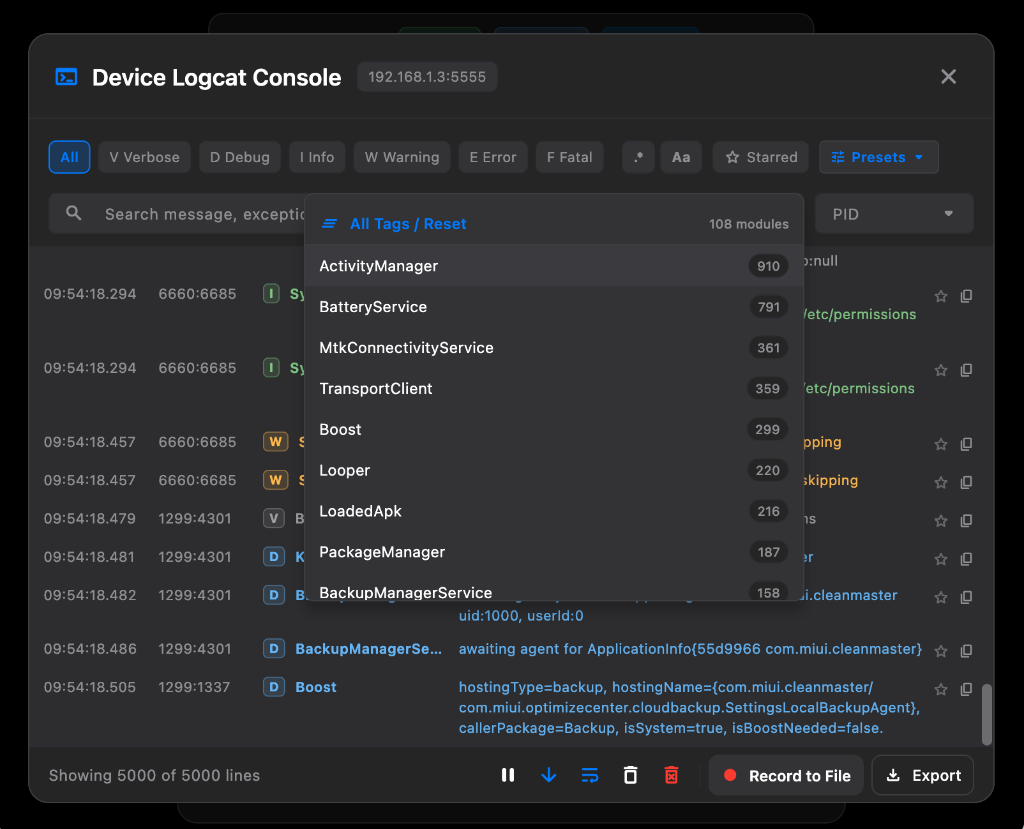

Azdroid Real-Time Logcat Console with Multi-Tier Filters

Device Logcat Console (Cmd+Shift+L)
_{Live stream (batched every 100 ms), 5k ring buffer, regex/PID/tag filters, star bookmarks & recording to a file.}

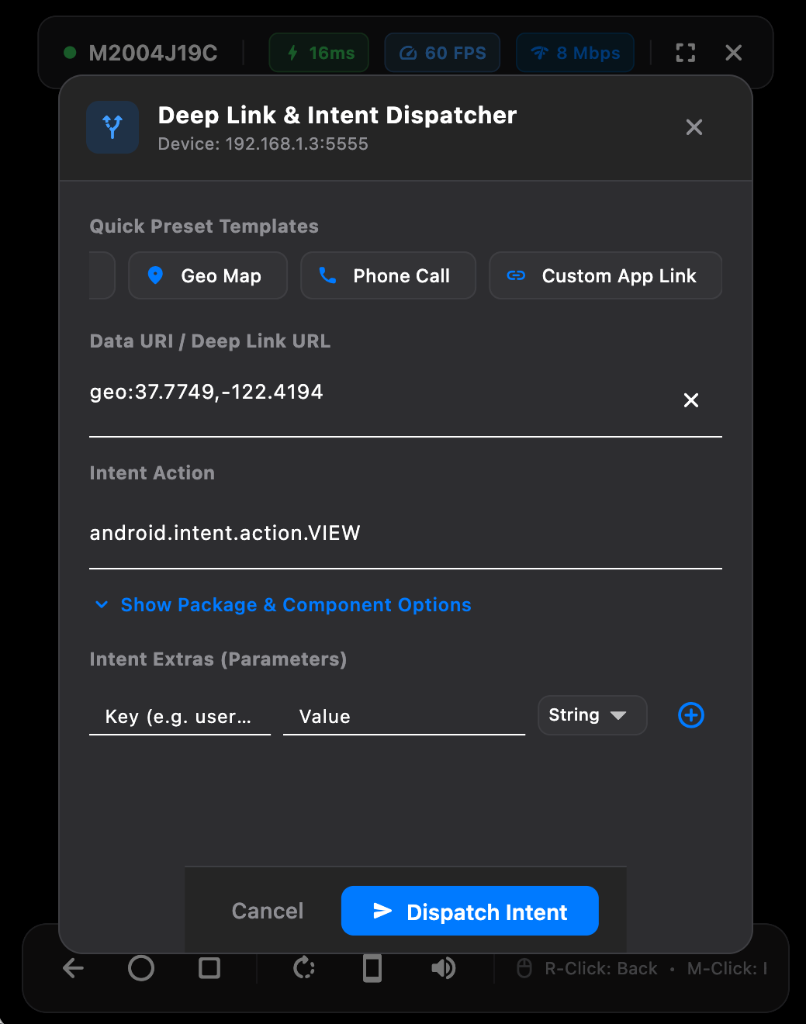

Azdroid Deep Link Tester and Android Intent Dispatcher

Deep Link & Intent Dispatcher (Cmd+Shift+D)
_{Fire custom URI schemes, system actions, targeted packages & typed extras.}

3. App Deployment & Two-Way File Management

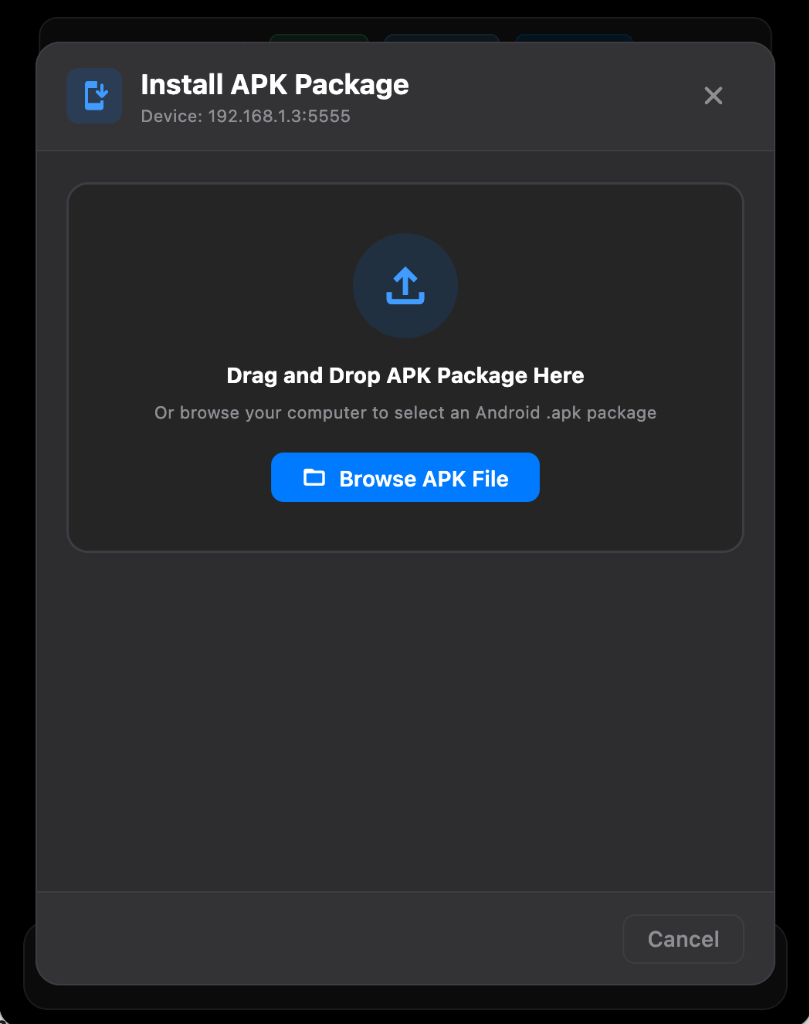

Azdroid 1-Click APK Sideload and Package Manager

1-Click APK Manager (Cmd+Shift+I)
_{AAPT2 metadata inspection, permission grant flags, 1-click launch & clean uninstall.}

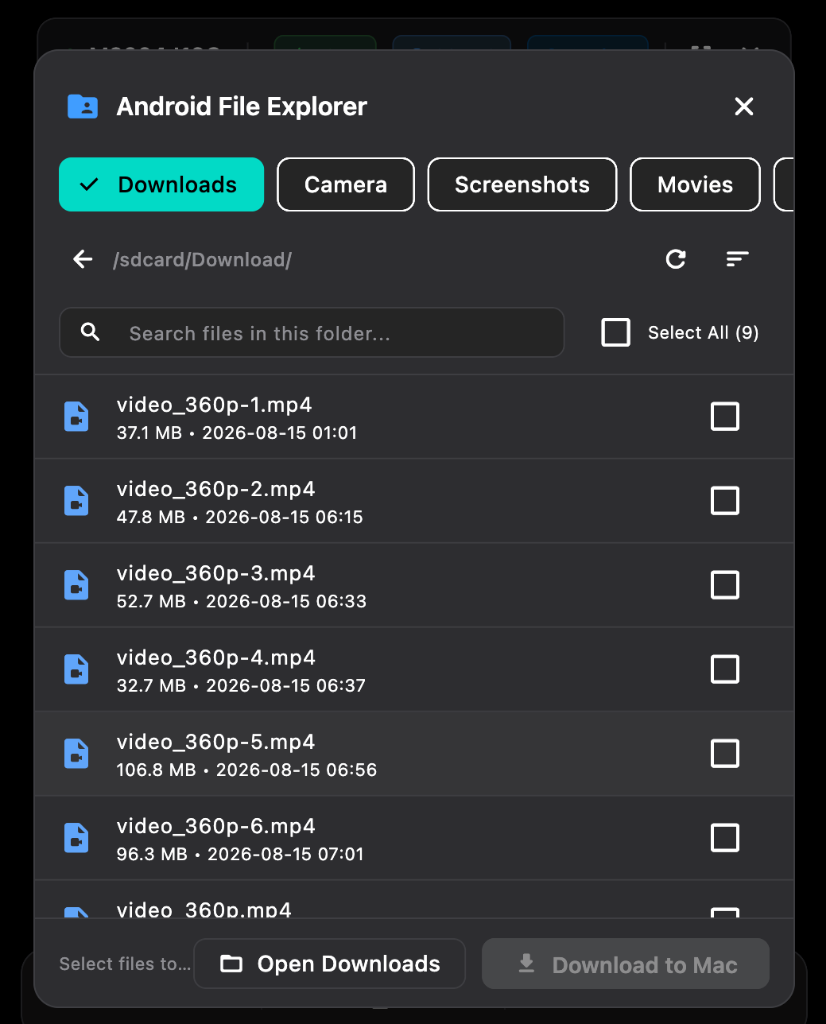

Device File Explorer (Cmd+Shift+F)
_{Two-way file browser with quick folder shortcuts & batch download.}

4. Lossless Media Capture & Screen Recording

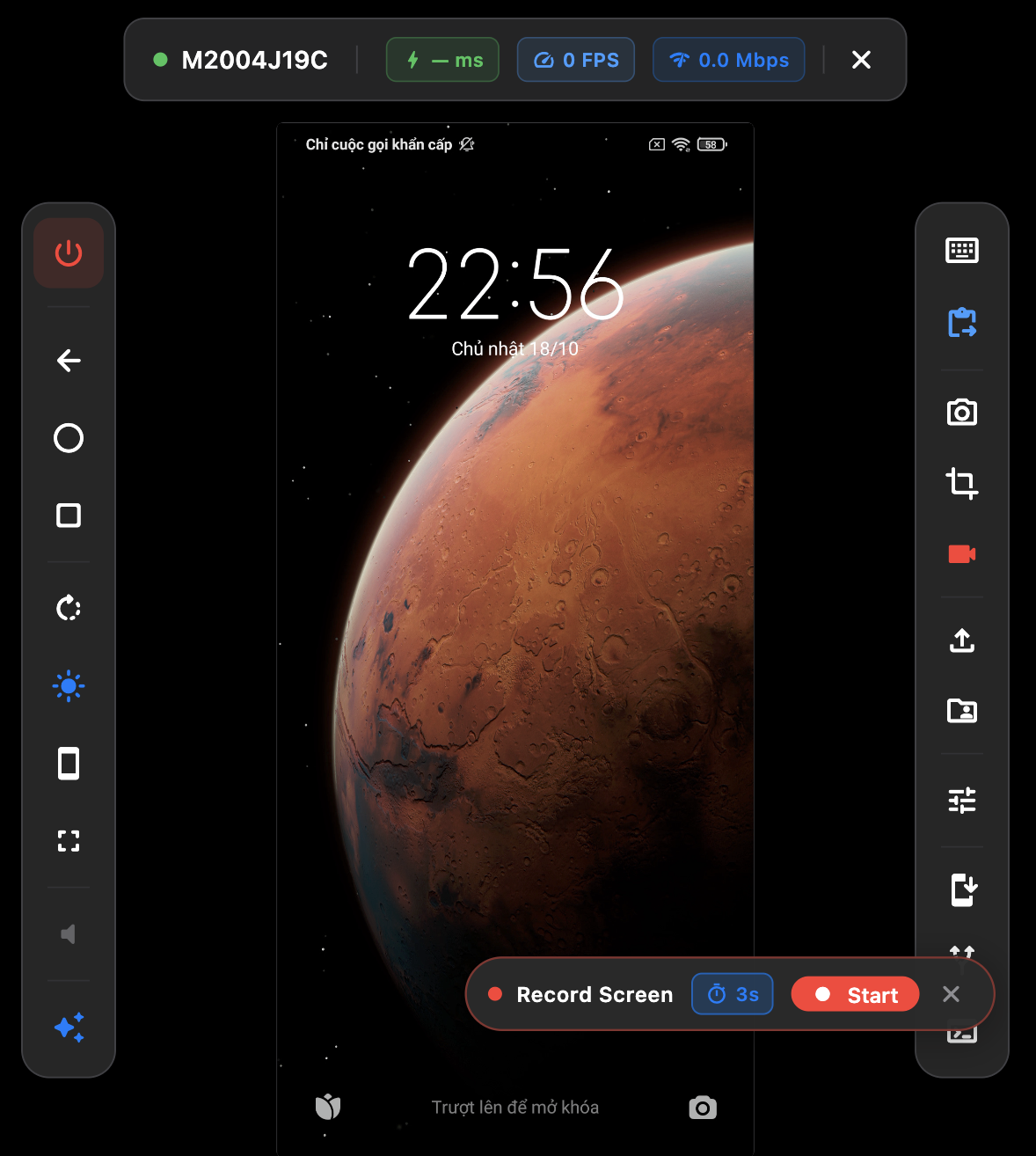

Azdroid screen recording bar with a 3-second countdown and Start button over the mirrored phone

Hardware Screen Recording (Cmd+Shift+R)
_{H.264 MP4 encoded by the phone's hardware encoder (up to 3 minutes), with a 3 s countdown HUD.}

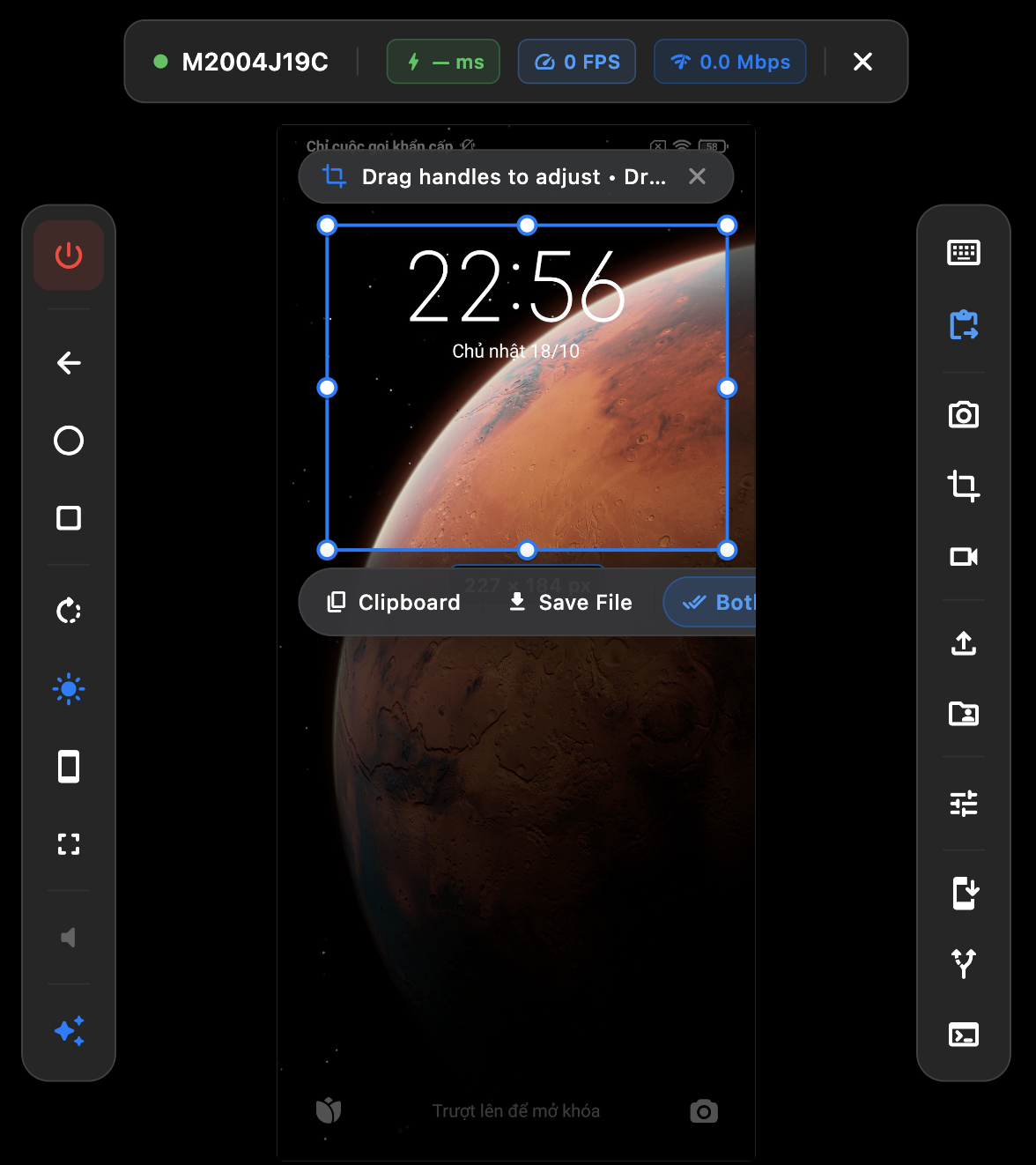

Azdroid area crop: a marquee with drag handles over the mirrored phone and Clipboard, Save File, and Both actions

Interactive Area Crop (Cmd+Shift+S)
_{PNG marquee crop with live pixel badge; copy, save, or both.}

5. Remote Text Input

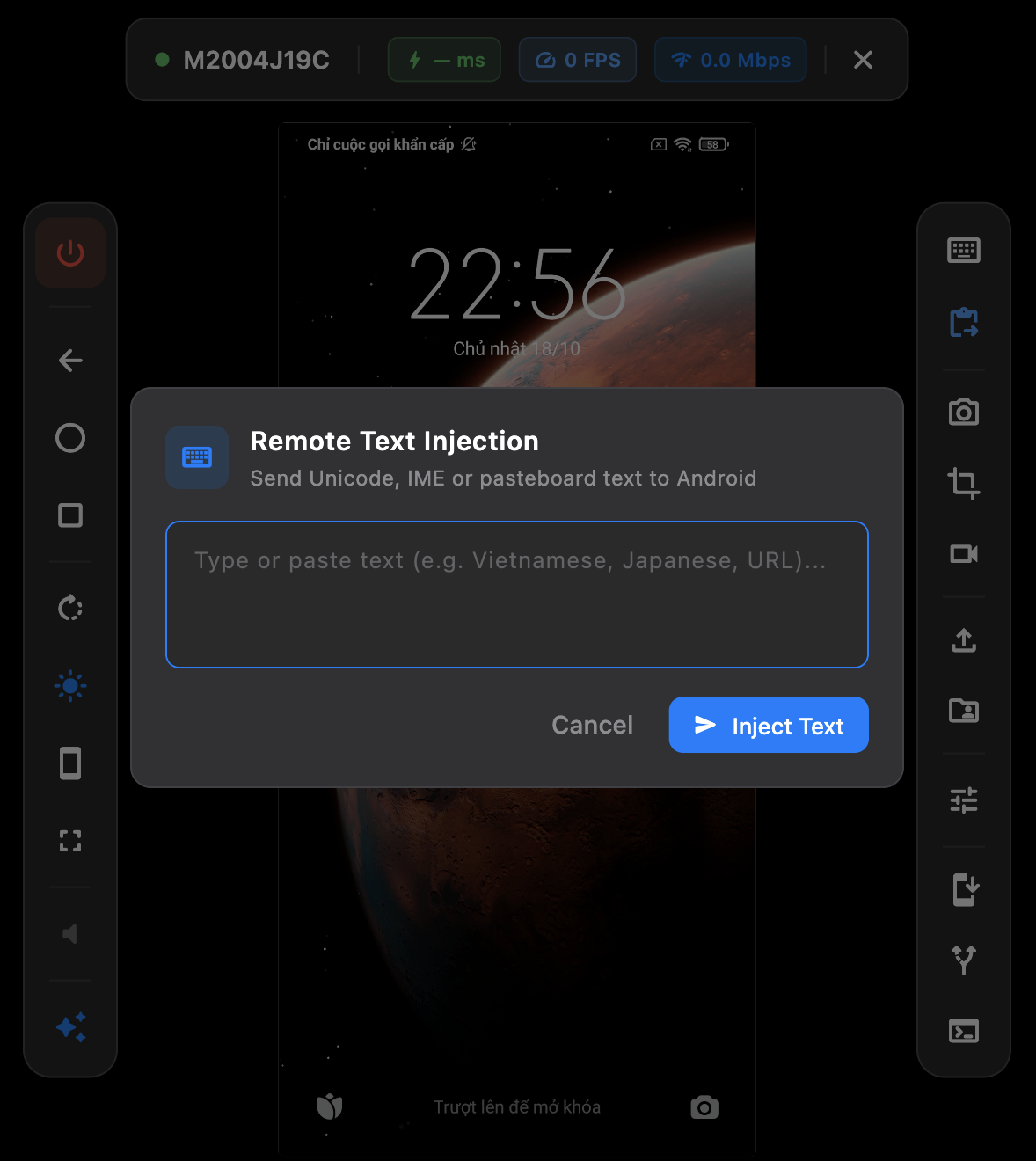

Azdroid Remote Text Injection dialog over the mirrored phone, with a text field and Inject Text button
Remote Text Injection (Cmd+K)
_{Type or paste text for the phone; Vietnamese, CJK, and emoji arrive intact.}

🤖 Autonomous AI Agent Architecture & Workflow (MCP Server)

Connect Claude Desktop, Cursor, Antigravity, and Cline directly to your physical or emulated Android devices with zero UI overhead. For detailed step-by-step triage, see the Autonomous Workflow Guide and AI Agent Setup Guide.

⚡️ Executive Overview

The Azdroid MCP Server (azdroid-mcp) transforms your connected Android devices (physical hardware or emulators over Wi-Fi and USB) into an autonomous testing and automation environment for AI assistants (e.g., Claude Desktop, Cursor, Antigravity, Cline).

Operating over standard I/O (stdio) via JSON-RPC 2.0, the server provides 62 specialized tools. This empowers AI agents to see, touch, inspect, debug, and verify Android applications in a complete autonomous closed loop:

mermaid

flowchart TD
    subgraph P1 ["Phase 1: Task Intake"]
        A["🎯 1. User Request\nHigh-level goal or bug report"]
    end

    subgraph P2 ["Phase 2: Perception & Action (Observe & Act)"]
        B["👀 2. Sensory Inspection\nXML Semantic Tree & Screenshot"]
        C["👆 3. Touch & Input\nHardware taps, typing & gestures"]
        B --> C
    end

    subgraph P3 ["Phase 3: Triage & Rectification (Diagnose & Repair)"]
        D["🚨 4. Error Interception\nCrash dump & logcat traces"]
        E["🛠️ 5. Source Code Fix\nRoot cause repair in IDE"]
        D --> E
    end

    subgraph P4 ["Phase 4: Closed-Loop Assurance (Verify & Deliver)"]
        F["🔁 6. Automated Re-verification\nCold restart & replay macro"]
        G["✅ 7. Final Delivery\nAudited report with proof"]
        F --> G
    end

    A ==> B
    C ==> D
    E ==> F
    F -.->|Regression Detected| D

    classDef stage fill:#1E293B,stroke:#475569,stroke-width:1.5px,color:#F8FAFC;
    class A,B,C,D,E,F,G stage;
    style A stroke:#3B82F6,stroke-width:2px
    style B stroke:#0EA5E9,stroke-width:2px
    style C stroke:#14B8A6,stroke-width:2px
    style D stroke:#EF4444,stroke-width:2px
    style E stroke:#F59E0B,stroke-width:2px
    style F stroke:#8B5CF6,stroke-width:2px
    style G stroke:#10B981,stroke-width:2px

Phase	Step	Purpose	Primary Azdroid MCP Tools
1	🎯 User Request	Delegating task or bug reproduction prompt	Client Prompt Context
2	👀 Sensory Inspection	Grounding UI structure with millimeter accuracy	`android_get_semantic_tree`, `android_take_screenshot`
3	👆 Touch & Action	Injecting multi-touch, typing, and key events	`android_tap`, `android_type_text`, `android_swipe`
4	🚨 Error Interception	Capturing stack traces, ANRs, and log buffers	`android_check_crash`, `android_get_logcat`
5	🛠️ Source Code Fix	Editing source files and resolving root causes	IDE File Tools / Compiler
6	🔁 Re-verification	Replaying user journey on physical device	`android_launch_app`, `android_batch_actions`
7	✅ Final Delivery	Delivering verified outcome with evidence	Final Audit Report

🏛️ High-Level Interaction Architecture

mermaid

sequenceDiagram
    autonumber
    actor User as 👤 Engineer / QA
    participant AI as 🤖 AI Assistant (Claude / Cursor / Antigravity)
    participant MCP as ⚡️ Azdroid MCP Server (azdroid-mcp)
    participant Device as 📱 Android Device (Wi-Fi / USB)
    participant Desktop as 🖥️ Azdroid Desktop Viewport (macOS / Windows)

    User->>AI: 1. Dispatches high-level task / bug report
    Note over AI: 2. Formulates multi-step execution plan

    rect rgb(240, 248, 255)
        Note over AI,Device: Perception & Interaction Loop (Observe & Act)
        AI->>MCP: android_list_devices & android_get_current_app
        MCP->>Device: Low-level ADB inspection
        Device-->>MCP: Hardware state & foreground activity
        MCP-->>AI: Active device telemetry

        AI->>MCP: android_get_semantic_tree & android_take_screenshot
        MCP->>Device: Dump accessibility hierarchy & screen frame
        Device-->>MCP: UI node coordinates & visual frame
        MCP-->>AI: Semantic UI Tree (XML) & PNG screenshot

        opt Real-time Mirroring Observation
            Device-->>Desktop: H.264 Video Stream (60 FPS, < 30ms latency)
            Desktop-->>User: Visual feedback of AI gestures & clicks in real time
        end

        AI->>MCP: android_tap / android_type_text / android_swipe
        MCP->>Device: Hardware input event injection
    end

    rect rgb(255, 245, 245)
        Note over AI,Device: Diagnostic Interception (Triage)
        AI->>MCP: android_check_crash & android_get_logcat
        Device-->>MCP: Crash stack trace & logcat buffer
        MCP-->>AI: Root cause evidence (NullPointer, ANR, 500 API)
    end

    rect rgb(245, 255, 245)
        Note over AI,User: Source Code Rectification & Verification (Fix & Verify)
        AI->>AI: Locates error in codebase, edits code, triggers build
        AI->>MCP: android_launch_app (Restarts updated application)
        AI->>MCP: android_batch_actions (Re-plays user flow)
        AI->>MCP: android_get_semantic_tree (Verifies success dialog)
        MCP-->>AI: UI validated with zero crashes
    end

    AI-->>User: Delivers comprehensive completion report with evidence

⚡️ Complete Feature Catalog

Azdroid includes 14 built-in modules (plus a planned menu bar companion):

#	Feature	Highlights & Capabilities	Shortcut	Docs
01	Wireless Display & Low-Latency Streaming	Up to 60 FPS at native resolution, H.264 hardware decoding (VideoToolbox on macOS, Media Foundation on Windows), live FPS / bitrate / latency badges	Auto	Guide
02	Device Discovery & Wireless Pairing	Subnet ARP scan, 1-click USB-to-Wi-Fi, mDNS discovery for Android 11+ pairing	Auto / Toolbar	Guide
03	Remote Input & Gesture Control	Trackpad scrolling, two-finger pinch and rotate (trackpad or Alt + drag), right-click back, over the scrcpy control socket	Mouse / Trackpad	Guide
04	Keyboard & Text Injection	Desktop keyboard shortcuts and a text input modal; Vietnamese, CJK, and emoji are pasted intact	`Cmd`+`K`	Guide
05	Screen-Off Streaming	Turns the phone's display panel off while mirroring and control continue

Shortcuts are shown with Cmd (macOS); use Ctrl on Windows. Most features are verified on macOS; the Windows preview has verified mirroring, logcat, bitrate presets, and the MCP server. Audio forwarding (Android 11+) is new and not yet verified in the app on either platform. Full matrix: Platform Support.

⌨️ Essential Keyboard Shortcuts

Use Cmd on macOS and Ctrl on Windows (for example Ctrl + Shift + S). Tooltips in the app always show the keys of the running platform.

Shortcut (macOS / Windows)	Action	Description
`Cmd` / `Ctrl` + `S`	Full Screenshot	Captures full phone screen to your Downloads folder & clipboard
`Cmd` + `Shift` + `S`	Area Screenshot	Drag interactive marquee to crop custom screen region
`Cmd` + `Shift` + `R`	Screen Recording	Hardware H.264 MP4 recording (up to 3 minutes) with countdown HUD & timer
`Cmd` + `Shift` + `I`	APK Manager	Inspect package metadata, configure install flags & sideload
`Cmd` + `Shift` + `D`	Intent Dispatcher	Fire deep link URLs, system intents & typed extras
`Cmd` + `Shift` + `F`	Device Files	Browse phone directories & download files to the computer
`Cmd` + `Shift` + `L`	Device Logcat	Real-time log stream with level/tag/PID filtering & export
`Cmd` + `O`	Screen-Off Toggle	Turn the phone's screen off or on; mirroring continues
`Cmd` + `K`	Text Injection	Open the text input modal (any language, emoji included)
`Cmd` + `H` / `Backspace`	Home / Back	Standard Android navigation controls

🏗️ Architecture

mermaid

flowchart LR
    subgraph AndroidDevice ["📱 Android Device"]
        A1["SurfaceControl / Display Capture"] --> A2["MediaCodec (H.264 hardware)"]
        A2 --> A3["scrcpy-server (Shell-level daemon)"]
        A4["InputManager (Touch / Key Injection)"] <--- A3
    end

    subgraph Transport ["📶 Local Wi-Fi (LAN) / 🔌 USB Cable"]
        V_STREAM["TCP Video Stream (Raw NAL Units)"]
        A_STREAM["TCP Audio Stream (Raw PCM, Android 11+)"]
        C_SOCKET["TCP Control Socket (scrcpy Control Messages)"]
    end

    subgraph DesktopApp ["💻 macOS / Windows (Azdroid App - Flutter)"]
        M1["Flutter UI"] --> M2["Mouse & Keyboard Event Listener"]
        M3["Native Video Decoder (VideoToolbox / Media Foundation) → Texture"] --> M1
    end

    A3 === V_STREAM ===> M3
    A3 === A_STREAM ===> M4["Native Audio Player (AVAudioEngine / WASAPI)"]
    M2 === C_SOCKET ===> A3

🛠️ Quick Start & Installation

Prerequisites

	macOS	Windows (Preview)
Host	macOS 12.0+ (Apple Silicon or Intel)	Windows 10/11 x64
ADB	Bundled in release builds (optional: `brew install android-platform-tools`)	Bundled in release builds (optional: `winget install Google.PlatformTools`)
Android	5.0+ with USB Debugging enabled	Same

Install a release

macOS: unzip Azdroid-v1.3.0-macOS.zip, move Azdroid.app to /Applications. Unsigned build: run xattr -cr /Applications/Azdroid.app once if Gatekeeper blocks it.
Windows: unzip Azdroid-v1.3.0-Windows-x64.zip (ADB included) and run Azdroid\desk_droid.exe (no installer). Unsigned build: on the SmartScreen prompt choose More info → Run anyway.

Run from source

bash

# 1. Clone repository
git clone https://github.com/az-coder-123/azdroid.git
cd azdroid

# 2. Install dependencies & launch
flutter pub get
flutter run -d macos     # macOS
flutter run -d windows   # Windows (needs Visual Studio 2022 with "Desktop development with C++")

Build a release package

bash

./scripts/build_release.sh                                            # macOS → RELEASE/Azdroid-v<version>-macOS.zip
powershell -ExecutionPolicy Bypass -File scripts\build_release.ps1     # Windows → RELEASE\Azdroid-v<version>-Windows-x64.zip

Full setup, ADB drivers, and packaging options: Installation & Building. Publishing a release: Release Guide.

📚 Documentation Hub

Guide	Scope
💿 Installation & Building	Install on macOS or Windows, set up ADB, run from source, and package a release
🚀 Release Guide	Step-by-step release procedure: version, notes, build, package, upload, README links
🖥️ Platform Support	What works on macOS and Windows, and where the platforms differ
📖 User Guide	Getting started, first-time setup, and device permissions
📶 Pairing Guide	Wireless pairing instructions for Android 11+ and USB fallback
⌨️ Shortcuts & Gestures	Complete mouse gestures and keyboard shortcuts (`Cmd` on macOS, `Ctrl` on Windows)
⚡️ Features Catalog	Modular in-depth documentation across all 16 built-in features
🏛️ Architecture

🏷️ Search Keywords & Tags

android-screen-mirroring · scrcpy-macos-gui · scrcpy-windows-gui · wireless-adb · screen-mirror-mac · screen-mirror-windows · flutter-desktop · apple-silicon · android-logcat-gui · apk-installer-mac · deep-link-tester · android-file-transfer-mac · low-latency-streaming · open-source

🤝 Community, Contributing & License

🤝 Contributing

Contributions, feature requests, and bug reports are warmly welcome! Azdroid thrives on community feedback.

Found a bug? Submit a detailed GitHub Issue.
Have a feature idea? Share it in Feature Requests.
Want to contribute code? Fork, branch, and open a Pull Request.

📄 License & Freedom

Azdroid is 100% free, open-source, and privacy-respecting software released under the MIT License.

You are free to use, modify, distribute, and integrate this software into personal or commercial workflows. See LICENSE for full legal terms.
