## Description
DXF drawings for AI agents: structured facts, PNG renders, and an interactive in-chat viewer.

## Claude Desktop Quick Installation
Install path detected from listing signals. Uses `npx` (confidence: high):

```json
"mcpServers": {
  "aspicio": {
    "command": "npx",
    "args": ["-y","@aspicio/mcp"]
  }
}
```

## Documentation & README

<div align="center">
  <img src="https://raw.githubusercontent.com/frontsail-ai/aspicio/HEAD/apps/demo/public/favicon.svg" width="72" height="72" alt="Aspicio logo" />
  <h1>Aspicio</h1>
  <p><strong>Drawing understanding for people, applications, and AI agents — DXF and vector PDF.</strong></p>
  <p><em>Aspicio</em> (Latin: "I look at")</p>
  <p>
    <a href="https://github.com/frontsail-ai/aspicio/actions/workflows/ci.yml"><img src="https://github.com/frontsail-ai/aspicio/actions/workflows/ci.yml/badge.svg" alt="CI" /></a>
    <a href="https://www.npmjs.com/package/@aspicio/core"><img src="https://img.shields.io/npm/v/%40aspicio%2Fcore?label=%40aspicio%2Fcore" alt="npm: @aspicio/core" /></a>
    <a href="https://www.npmjs.com/package/@aspicio/elements"><img src="https://img.shields.io/npm/v/%40aspicio%2Felements?label=%40aspicio%2Felements" alt="npm: @aspicio/elements" /></a>
    <a href="https://www.npmjs.com/package/@aspicio/react"><img src="https://img.shields.io/npm/v/%40aspicio%2Freact?label=%40aspicio%2Freact" alt="npm: @aspicio/react" /></a>
    <a href="https://www.npmjs.com/package/@aspicio/vue"><img src="https://img.shields.io/npm/v/%40aspicio%2Fvue?label=%40aspicio%2Fvue" alt="npm: @aspicio/vue" /></a>
    <a href="https://www.npmjs.com/package/@aspicio/svelte"><img src="https://img.shields.io/npm/v/%40aspicio%2Fsvelte?label=%40aspicio%2Fsvelte" alt="npm: @aspicio/svelte" /></a>
    <a href="https://www.npmjs.com/package/@aspicio/mcp"><img src="https://img.shields.io/npm/v/%40aspicio%2Fmcp?label=%40aspicio%2Fmcp" alt="npm: @aspicio/mcp" /></a>
    <a href="https://github.com/frontsail-ai/aspicio/blob/HEAD/LICENSE"><img src="https://img.shields.io/badge/license-MIT-blue.svg" alt="License: MIT" /></a>
  </p>
  <p><a href="https://aspicio.frontsail.app"><strong>▶ Live demo</strong></a></p>
</div>

Aspicio is an open-source (MIT), TypeScript-first drawing engine: one
framework-free `parse → tessellate` pipeline that runs in the browser, in
Node, and in serverless runtimes. It reads DXF and the vector content of
PDF — the kind of PDF that carries artwork and dielines rather than a

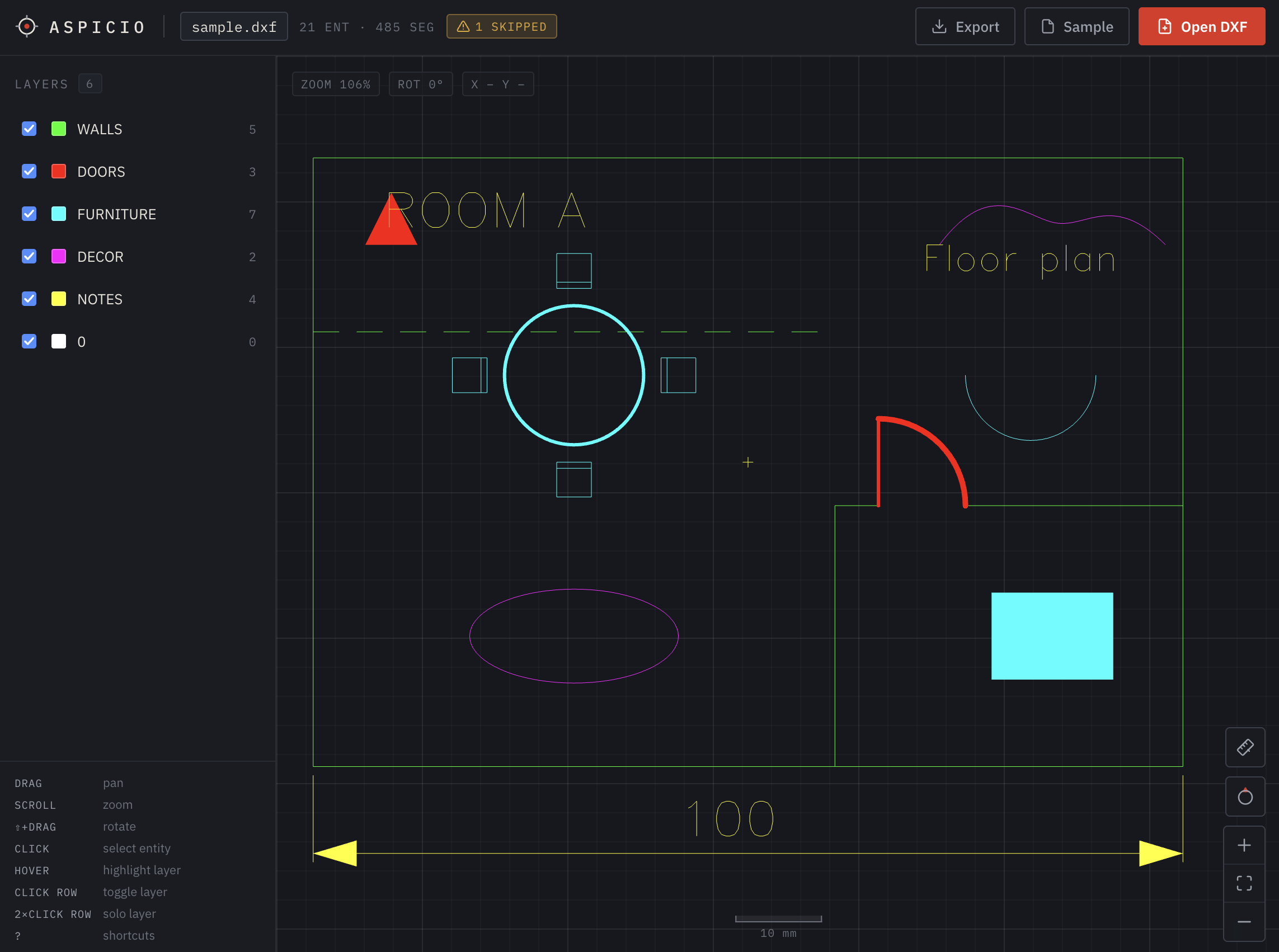

scan. A person gets an interactive WebGL viewer of a CAD drawing; an AI
agent gets structured JSON facts and a rendered PNG of the same file.
Every surface — the browser viewer, the web components and their React,
Vue, and Svelte bindings, the headless renderer, the HTTP API, and the MCP
server — is a thin adapter over the same engine, so a drawing is equally
readable everywhere.

```
DXF / PDF bytes ─parse─▶ DrawingDocument ─tessellate─▶ Tessellation ──┬─▶ WebGL renderer (viewer)
                        (normalized model)   (batched geometry)       ├─▶ SVG string (export / API / MCP)
                                                                      └─▶ DrawingSummary (describe)
```

How it's built: [docs/architecture.md](https://github.com/frontsail-ai/aspicio/blob/HEAD/docs/architecture.md) · behavior
specs: [docs/product-specs/](https://github.com/frontsail-ai/aspicio/blob/HEAD/docs/product-specs/README.md)

<img src="https://raw.githubusercontent.com/frontsail-ai/aspicio/HEAD/docs/sample-demo.png" alt="Aspicio viewing a sample floor-plan DXF — layer panel, colored geometry, text, and a dimension" />

## Embed it

One embed, every flavor — and every path below renders the same web
components, so the result is pixel-identical no matter which you pick.

### Web components — plain HTML, any framework

One tag gives you the layer panel plus an interactive preview; no
bindings needed:

```html
<script type="module">
  import "@aspicio/elements";
  import "@aspicio/elements/formats/dxf";
</script>

<aspicio-embed src-url="/drawing.dxf" style="height: 480px"></aspicio-embed>
```

Formats are opted into by import: the package brings the components, the
`formats/*` entry brings the parser. That is what keeps a DXF app from
shipping every other format's code — and every flavor below does the same.

### React

The same embed with idiomatic props and a `ref` exposing the full
viewer, via [`@aspicio/react`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/react):

```tsx
import { AspicioEmbed } from "@aspicio/react";
import "@aspicio/react/formats/dxf";

<AspicioEmbed src={file} style={{ height: 480 }} />;
```

### Vue

Typed props and emits with unwrapped payloads, via
[`@aspicio/vue`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/vue):

```vue
<script setup>
import { AspicioEmbed } from "@aspicio/vue";
import "@aspicio/vue/formats/dxf";
</script>

<template>
  <AspicioEmbed src-url="/drawing.dxf" style="height: 480px" />
</template>
```

### Svelte

The same components as raw Svelte 5 source with typed callback props,
via [`@aspicio/svelte`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/svelte):

```svelte
<script>
  import { AspicioEmbed } from "@aspicio/svelte";
  import "@aspicio/svelte/formats/dxf";
</script>

<AspicioEmbed srcUrl="/drawing.dxf" style="height: 480px" />
```

### Vanilla TypeScript

Skip the ready-made UI and drive the viewer directly from
[`@aspicio/core`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/core) — bring your own chrome:

```ts
import { DrawingViewer } from "@aspicio/core";
import { dxfParser } from "@aspicio/core/dxf";

const viewer = new DrawingViewer(document.querySelector("#preview")!, {
  parsers: [dxfParser],
});
await viewer.load(file); // File | Blob | ArrayBuffer | DXF text (ASCII or binary)
```

### Headless — Node and serverless

Parse, describe, and render with no browser at all (server-side
previews, thumbnails, pipelines):

```ts
import {
  describeDrawing,
  parseWith,
  tessellate,
  tessellateSpace,
  tessellationToSvg,
} from "@aspicio/core";
import { dxfParser } from "@aspicio/core/dxf";

const doc = await parseWith([dxfParser], bytes); // ASCII or binary DXF
const summary = describeDrawing(doc); // units, bounds, layers, texts, spaces…
const svg = tessellationToSvg(tessellate(doc)); // model space (a PDF's page 1)

// Multi-page PDFs and multi-sheet DXFs: describe covers all of them, and
// either verb can be scoped to one.
const page3 = describeDrawing(doc, { space: "Page 3" });
const sheet = tessellationToSvg(tessellateSpace(doc, "Layout1"));
```

What you get: WebGL rendering batched to one draw call per layer (large
drawings stay interactive), broad entity coverage (lines, arcs, circles,
ellipses, polylines with bulges, splines, TEXT/MTEXT, DIMENSION,
SOLID/HATCH fills, nested INSERT blocks — anything unsupported is counted
and reported, never fatal), a layer list with the colors that are
_actually drawn_ (per-entity overrides included, not just the layer
table), measure
with object snap, entity picking, paper-space layouts, SVG/PNG export,
and first-class touch. Out of scope: editing and 3D.

## Hand it to an agent

The same engine speaks MCP and HTTP, so an agent can _read_ a drawing
instead of guessing at it:

- **`describe_dxf`** — units, bounds, size, layers with effective colors,
  entity counts, and the drawing's text content. An agent reads a title
  block or a dimension value directly — no OCR, no vision round-trip.
- **`render_dxf`** — a PNG of the drawing the model can look at.
- **`view_dxf`** (hosted server) — an interactive in-chat viewer for the
  _person_ in the conversation, via the open [MCP Apps
  extension](https://modelcontextprotocol.io/seps/1865-mcp-apps-interactive-user-interfaces-for-mcp):
  pan, zoom, layer toggles, fullscreen, host light/dark theming. The
  widget is locked to the drawing the tool call delivered and makes no
  network requests; hosts without MCP Apps still get the structured
  facts.

<img src="https://raw.githubusercontent.com/frontsail-ai/aspicio/HEAD/docs/demo-widget.gif" alt="The in-chat viewer loading a 1.1 MB floor-plan DXF, toggling dimension and text layers, and expanding to fullscreen" />

| Surface                                      | Local files | URLs | Inline DXF |
| -------------------------------------------- | ----------- | ---- | ---------- |
| stdio MCP — `npx -y @aspicio/mcp`            | ✅          | ✅   | ✅         |
| Hosted MCP — `aspicio-api.frontsail.app/mcp` | —           | ✅   | ✅         |
| HTTP API — `/describe`, `/render`            | POST body   | ✅   | ✅         |

Connect:

- **Claude Code** — one step installs the MCP server plus the bundled
  skills (`aspicio-inspect-dxf`, `aspicio-embed`):
  `/plugin marketplace add frontsail-ai/aspicio` then `/plugin install aspicio@aspicio`
- **Codex** — the same repo doubles as a Codex marketplace:
  `codex plugin marketplace add https://github.com/frontsail-ai/aspicio`,
  `codex plugin add aspicio@aspicio`, then
  `codex mcp add aspicio -- npx -y @aspicio/mcp`
- **Any client that launches stdio MCP servers** — register
  `npx -y @aspicio/mcp`
- **Any client that supports remote MCP (Streamable HTTP)** — point it
  at `https://aspicio-api.frontsail.app/mcp` (no install;
  speaks MCP, not a browser page)
- **Plain HTTP** — `GET /describe?src=<dxf-url>`,
  `GET /render?src=<dxf-url>&format=png|svg`; the API self-describes at
  [`/openapi.json`](https://aspicio-api.frontsail.app/openapi.json)

URL fetches are guarded (private-network blocking, size caps, redirect
validation, timeouts). The stdio server reads local files in-process and
never uploads the DXF to any Aspicio service — though, as with any tool
result, your MCP client passes the returned summary or image to its
model provider. Full details:
[privacy policy](https://aspicio.frontsail.app/privacy/) ·
[terms](https://aspicio.frontsail.app/terms/).

## Available today · direction

Everything above is shipped and live: viewer + demo, core, web
components, React, Vue, and Svelte packages, headless describe/render, stdio and hosted MCP, the in-chat
MCP Apps viewer, the HTTP API with OpenAPI, and plugin packaging for
Claude Code and Codex.

Direction (intent, not commitments — see
[issues](https://github.com/frontsail-ai/aspicio/issues)): MCP registry
listings, structured entity queries and focused rendering, and an
upload flow so remote surfaces can handle local files.

## Packages

| Package                                  | Description                                                                                                         |
| ---------------------------------------- | ------------------------------------------------------------------------------------------------------------------- |
| [`@aspicio/core`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/core)         | The viewer library: parsing, tessellation, rendering, camera, input                                                 |
| [`@aspicio/elements`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/elements) | Web components: `<aspicio-embed>`, `<aspicio-preview>`, `<aspicio-layer-panel>` — plain HTML, Svelte, any framework |
| [`@aspicio/react`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/react)       | React bindings: `<AspicioEmbed>`, `<AspicioPreview>`, `<AspicioLayerPanel>`                                         |
| [`@aspicio/vue`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/vue)           | Vue 3 bindings: the same three components with typed props and emits                                                |
| [`@aspicio/svelte`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/svelte)     | Svelte 5 bindings: the same three components as raw .svelte source                                                  |
| [`@aspicio/mcp`](https://github.com/frontsail-ai/aspicio/blob/HEAD/packages/mcp)           | MCP server for AI agents: `describe_dxf` + `render_dxf`                                                             |
| [`@aspicio/api`](https://github.com/frontsail-ai/aspicio/blob/HEAD/apps/api)               | DXF HTTP API server (private): `/describe`, `/render`, `/mcp`                                                       |
| [`@aspicio/widget`](https://github.com/frontsail-ai/aspicio/blob/HEAD/apps/widget)         | MCP Apps in-chat viewer widget (private), served by the api server                                                  |
| [`@aspicio/demo`](https://github.com/frontsail-ai/aspicio/blob/HEAD/apps/demo)             | Standalone demo app (private) — also the reference integration                                                      |

How the viewer packages fit together: every framework path funnels into
the same Lit web components — one implementation of the embed UI — which
sit on the framework-free core. React, Vue, and Svelte get thin veneers
with idiomatic props; plain HTML consumes the elements directly.

```mermaid
flowchart TD
    REACTAPP["React app"]
    HTMLAPP["Plain HTML / vanilla JS app"]
    VUEAPP["Vue app"]
    SVELTEAPP["Svelte app"]

    REACT["<b>@aspicio/react</b><br/>&lt;AspicioEmbed&gt; · &lt;AspicioPreview&gt; · &lt;AspicioLayerPanel&gt;<br/><i>thin @lit/react veneer, API-stable</i>"]
    VUE["<b>@aspicio/vue</b><br/>&lt;AspicioEmbed&gt; · &lt;AspicioPreview&gt; · &lt;AspicioLayerPanel&gt;<br/><i>thin Vue 3 veneer, typed emits</i>"]
    SVELTE["<b>@aspicio/svelte</b><br/>&lt;AspicioEmbed&gt; · &lt;AspicioPreview&gt; · &lt;AspicioLayerPanel&gt;<br/><i>raw Svelte 5 source, compiled by your bundler</i>"]
    ELEMENTS["<b>@aspicio/elements</b><br/>&lt;aspicio-embed&gt; · &lt;aspicio-preview&gt; · &lt;aspicio-layer-panel&gt;<br/><i>Lit web components — the one embed-UI implementation</i>"]
    CORE["<b>@aspicio/core</b><br/>parse → tessellate → render<br/><i>camera · input · picking · SVG/PNG export · headless describe</i>"]

    REACTAPP -->|"idiomatic props, ref → DrawingViewer"| REACT
    REACT -->|"wraps"| ELEMENTS
    HTMLAPP -->|"attributes + DOM events"| ELEMENTS
    VUEAPP -->|"idiomatic props + emits"| VUE
    VUE -->|"wraps"| ELEMENTS
    SVELTEAPP -->|"typed callback props"| SVELTE
    SVELTE -->|"wraps"| ELEMENTS
    ELEMENTS -->|"drives"| CORE
    HTMLAPP -.->|"or hand-rolled UI on the DrawingViewer API"| CORE

    classDef pkg fill:#191c22,stroke:#4c8dff,color:#e7e3da
    classDef app fill:#1f232b,stroke:#3a3f4a,color:#9aa0ab
    class REACT,VUE,SVELTE,ELEMENTS,CORE pkg
    class REACTAPP,HTMLAPP,VUEAPP,SVELTEAPP app
```

## Development

Toolchain: [Vite+](https://viteplus.dev) (`vp`) on top of bun.

```bash
vp install       # install dependencies
vp run dev       # start the demo app
vp run ready     # check + test + build everything (the repo gate)
```

Testing, CI/deploy, releasing, and contribution guidance:
[CONTRIBUTING.md](https://github.com/frontsail-ai/aspicio/blob/HEAD/CONTRIBUTING.md).

---

Aspicio is developed and maintained by
[FrontSail AI](https://frontsail.ai/).
